ACE Controls MA150M Adjustable Miniature Shock Absorber 124-0302

Adjustable Miniature Shock Absorber
MA150M
Designed for applications with low precision requirements
Adjustable
Energy capacity 200 in-lbs/cycle
Stroke 0.50 inch

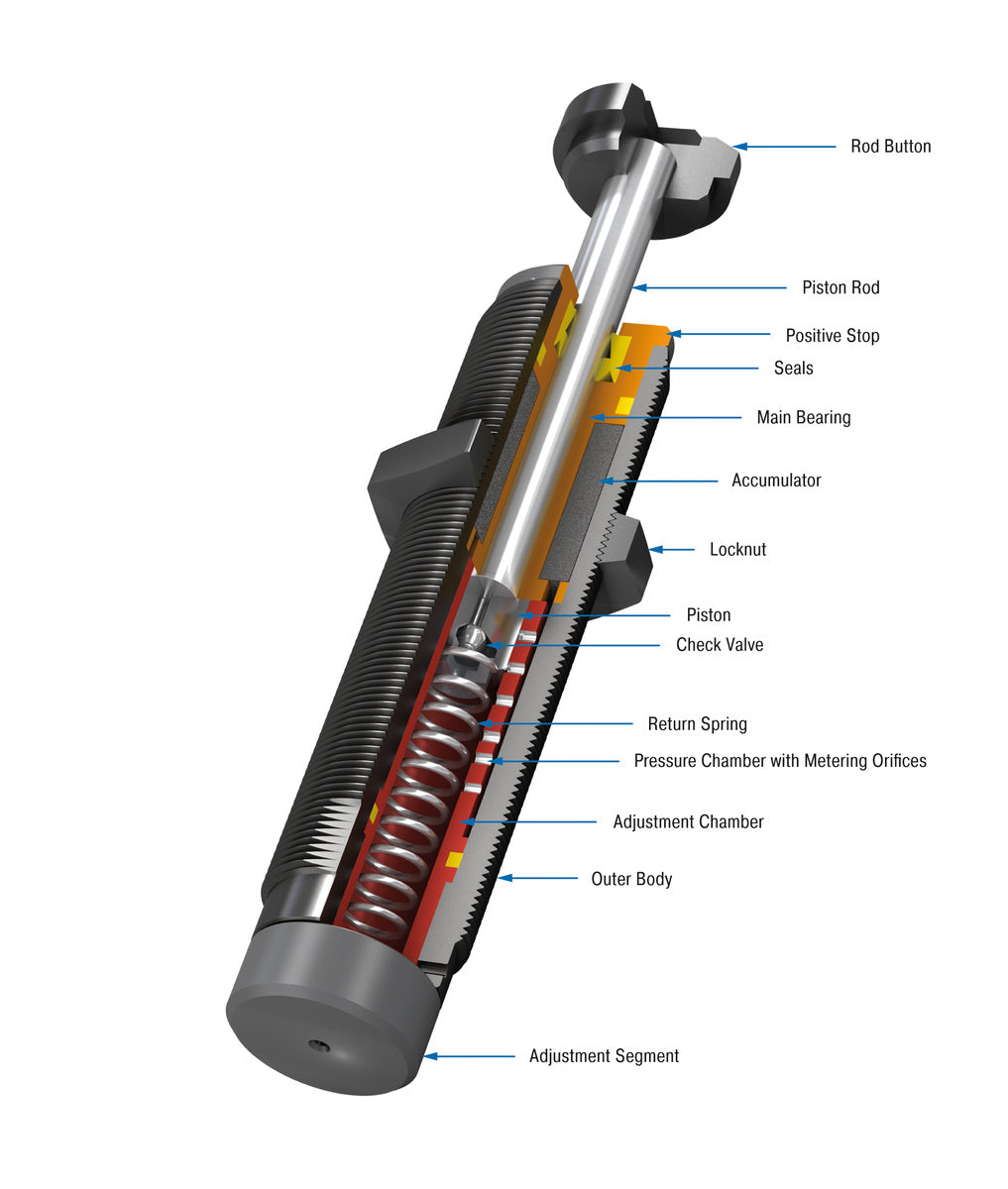

The ACE Controls MA150M Adjustable Miniature Shock Absorber 124-0302 is designed for applications with moderate precision needs. It features an adjustable energy capacity of 200 in-lbs per cycle and a 0.50-inch stroke. The MA150 incorporates rolling diaphragm technology, allowing use in pressure chambers and delivering smooth damping through longer strokes, which reduce reaction forces. Maintenance-free and ready to install, these units include an integrated positive stop and excel in situations where application conditions vary or flexibility is essential. Widely used in industrial, automation, and machine engineering, they provide reliable performance tailored to your needs.

Energy capacity: 200 in-lbs/cycle
Energy capacity: 300,000 in-lbs/h
Effective weight min.: 2 lbs
Effective weight max.: 240 lbs
Return Force min.: 0.70 lbs
Return Force max.: 1.20 lbs
Return Time: 0.4 s
Side Load Angle max.: 2 °
Impact velocity range At speeds of 0.98 ft/sec the maximum allowed energy is approx. 17.70 in-lbs. Where higher energies occur use a shock absorber for the initial impact. Avoid high impact velocities.
Operating temperature range 32 °F to 150 °F
Mounting In any position
Positive stop Integrated
Adjustment Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.
Material Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel
Damping medium Oil, temperature stable

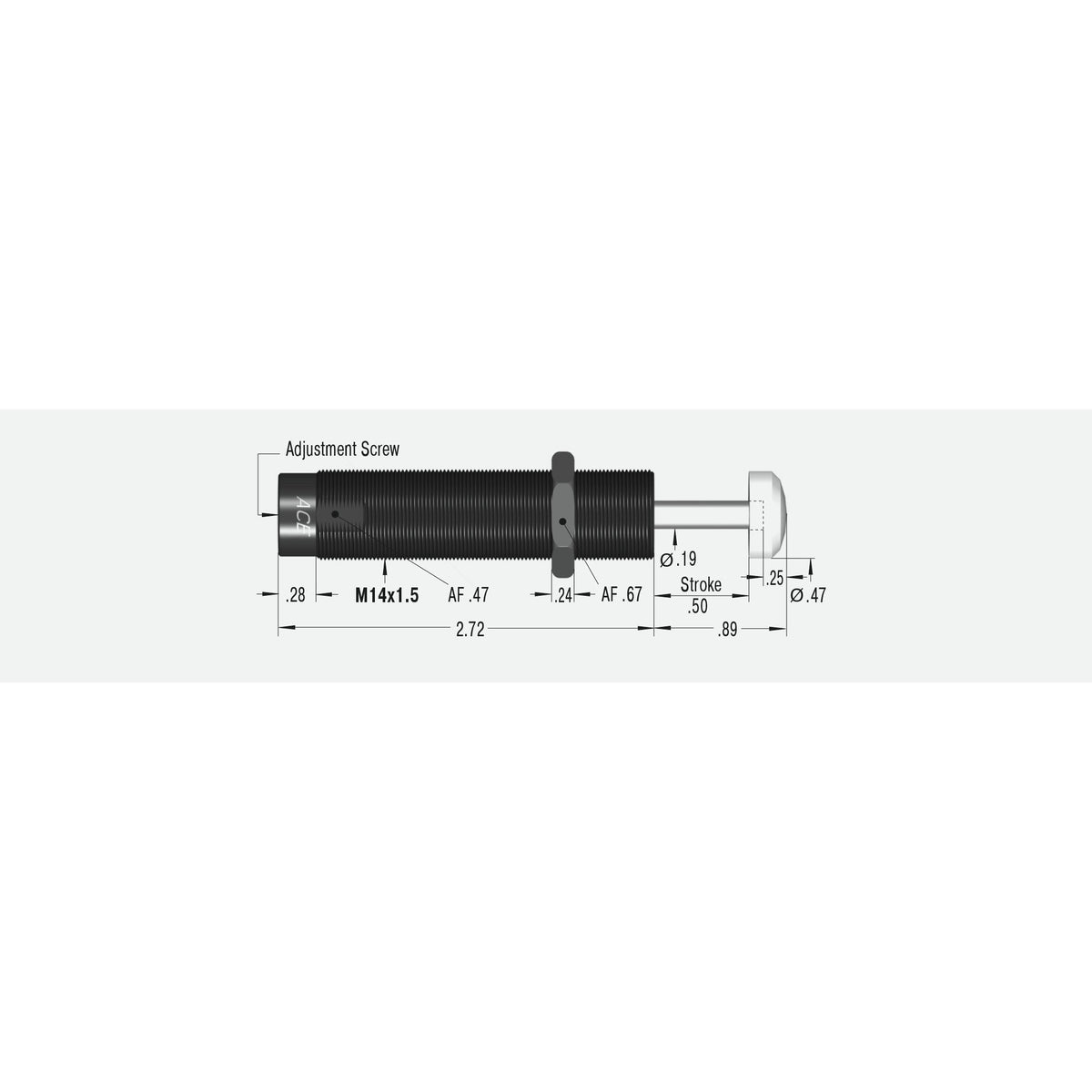

Stroke: 0.50 inch
M: M14x1.5 inch
