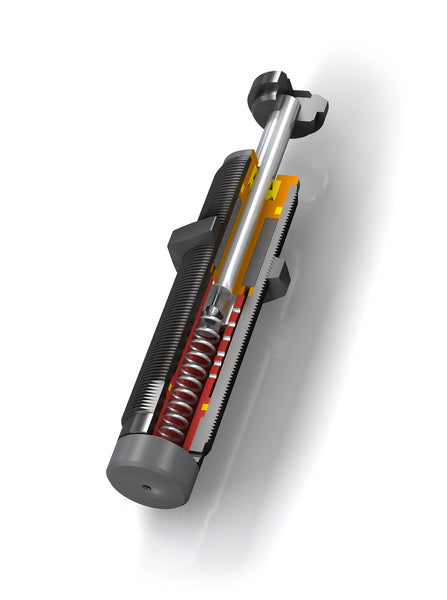

ACE Controls MA150 Hydraulic Feed Controls 124-0301

Hydraulic Feed Controls
MA150 Designed for applications with low precision requirements Adjustable
Energy capacity 200 in-lbs/cycle
Stroke 0.50 inch
Many application options: the hydraulic feed controls in models MA and MVC are similar to that of the VC model. However, these hydraulic controls have been designed for applications that require less precision.
There are also plenty of accessories for the MA and MVC models. All products are ready-to-install, maintenance-free, stable in temperature and avoid stick-slip effect. Speeds from 0.47"ACE Controls MA150 Hydraulic Feed Controls 124-0301"/min. (12 mm/min.) can be driven at a low thrust force using the adjustment screw on the base of the hydraulic control.
These adjustable miniature shock absorbers from ACE can be used to precisely meet the customer's application needs and are therefore found everywhere in industrial, automation and machine engineering and many other applications.

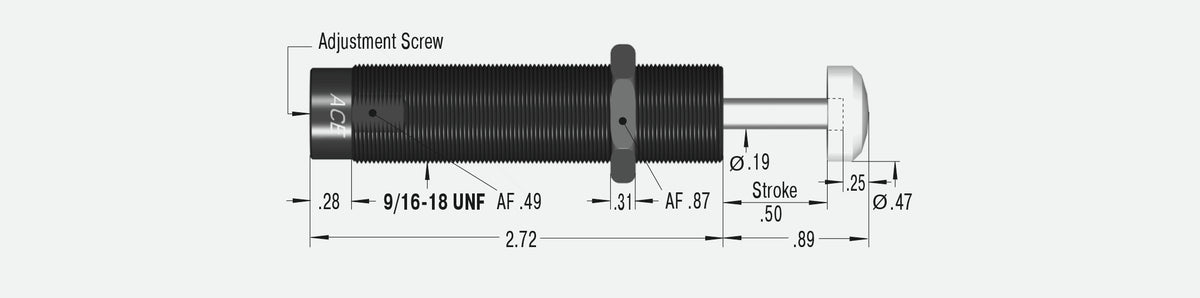

Stroke: 0.50 inch
M: 9/16-18 UNF inch

Energy capacity: 200 in-lbs/cycle
Energy capacity: 300,000 in-lbs/h
Effective weight min.: 2 lbs
Effective weight max.: 240 lbs
Return Force min.: 0.70 lbs
Return Force max.: 1.20 lbs
Return Time: 0.4 s
Side Load Angle max.: 2 °
Impact velocity range: 0.5 ft/sec to 12 ft/sec
Operating temperature range: 32 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Adjustment: Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.
Material: Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel
Damping medium: Oil, temperature stable
