HB-12-10 Linear motion control Adjustable
Compression force max. 40.47 lbs
Stroke 0.39 inch

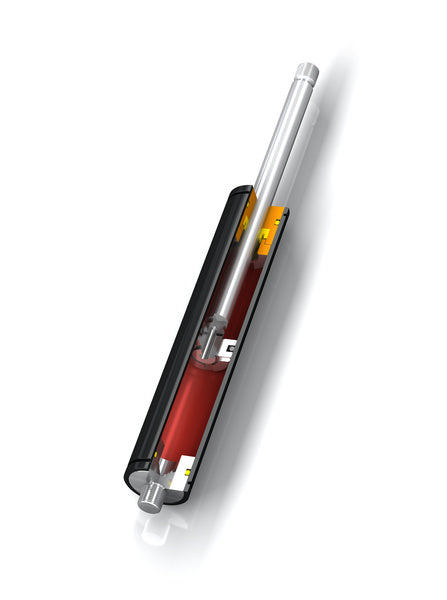

High quality and long service life: The hydraulic dampers of the product family HB can also be used as single or double acting brake. Its coated body and piston rods with wear-resistant surface treatment are features of high quality and long service life.
The maintenance free, ready-to-install and closed systems provide a constant feed rate and are adjustable. The control segment on the piston makes adjustment at the end position child’s play. Thanks to a broad selection of end fittings the assembly is easy to mount, so that the damper can be universally deployed for damping swinging masses, such as in power or free conveyors.

Stroke: 0.39 inch
L extended: 2.17 inch

Compression force max.: 40.47 lbs
Traction force max.: 40.47 lbs
Outer body diameter: Ø 0.47 in inch
Piston rod diameter: Ø 0.16 in
Lifetime: Approx. 250,000 cycles
Free travel: Construction of the damper results in a free travel of approx. 21 % of stroke.
Separator piston: -
Operating temperature range: -4 °F to 176 °F
Adjustment: Achieved by turning the piston rod in its fully extended or fully compressed position.
Clockwise rotation = increase of the damping
Anti-clockwise rotation = decrease of the damping
Damping force adjustable before installation. Adjustment can add a max. of 0.24 in to the L dimension.
Positive stop: External positive stops 0.04"ACE Controls HB-12-10 Hydraulic Dampers""ACE Controls HB-12-10 Hydraulic Dampers" to 0.06"ACE Controls HB-12-10 Hydraulic Dampers""ACE Controls HB-12-10 Hydraulic Dampers" before the end of stroke provided by the customer.
Damping medium: Hydraulic oil or Automatic Transmission Fluid (ATF)
Material: Outer body: Coated steel; Piston rod: Stainless steel (1.4301/1.4305, AISI 304/303); End fittings: Zinc plated steel
Mounting: In any position
