Brand: ACE Controls

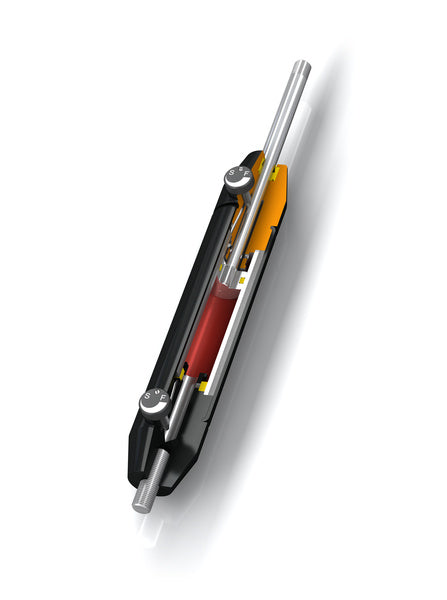

ACE Controls DVC-2 Hydraulic Dampers 185-0001
SKU: ACE-DVC-2
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
ACE Controls DVC-2 Hydraulic Dampers 185-0001
Hydraulic Dampers
DVC-2 Multi-directional speed adjustment Adjustable, Without Free Travel
Compression force max. 450 lbs
Stroke 2.00 inch
Separately regulated in any stroke position: The hydraulic dampers of the product family DVC-32 and DVC-2 to DVC-6 are the first dampers to provide precise, independent, external adjustment of in-and-out speeds. With their individual adjustments for the push and pull direction as well as the bi-directional action, these are suitable as safety or control elements.
The great number of mounting accessories makes assembly of these ACE hydraulic dampers easier and allows these maintenance-free, ready-to-install and self-contained systems universally applicable. Qualitatively high grade, and at the same time simple to use; one of their uses is to absorb swinging loads.
Stroke: 2.00 inch
A max.: 9.81 inch
B: 2.96 inch
L extended: - inch
Compression force min.: 9.5 lbs
Compression force max.: 450 lbs
Traction force min.: 9.5 lbs
Traction force max.: 450 lbs
Outer body diameter: Ø 1.26 in inch
Piston rod diameter: Ø 0.31 in
Lifetime: Approx. 250,000 cycles
Operating temperature range: 32 °F to 149 °F
Adjustment: Steplessly adjustable
Positive stop: External positive stops 0.04 in to 0.06 in before the end of stroke provided by the customer.
Damping medium: Automatic Transmission Fluid (ATF)
Material: Outer body: Coated aluminium; Piston rod: Hard chrome plated steel; End fittings: Zinc plated steel
Mounting: In any position
