Brand: ACE Controls
ACE Controls CD-63-80 Safety Bumpers
SKU: ACE-CD-63-80
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
ACE Controls CD-63-80 Safety Bumpers
Safety Bumpers
CD-63-80 Highly effective aluminium and steel energy absorption elements<sr> Single-use emergency stop dampers
Energy capacity 49,564 in-lbs/cycle to 99,128 in-lbs/cycle
Stroke 3.15 inch
Single-use, yet extremely useful protection: With its crash dampers, ACE offers engineers a single-use solution as a high-efficiency plant safety option. Each crash element, made of custom designed aluminium piping or steel, absorbs even high inertia forces almost instantaneously in the event of an impact. When arranged in series or parallel, the crash elements can absorb even higher energy values at once.
Other advantages of the emergency stop systems developed in sophisticated test series are their simple installation, ease of retrofitting in existing plants, speed of replacement and reduced downtime after a crash. The deformation of the crash box also allows the incident to be reconstructed, ideally helping avoid the same problem in future.

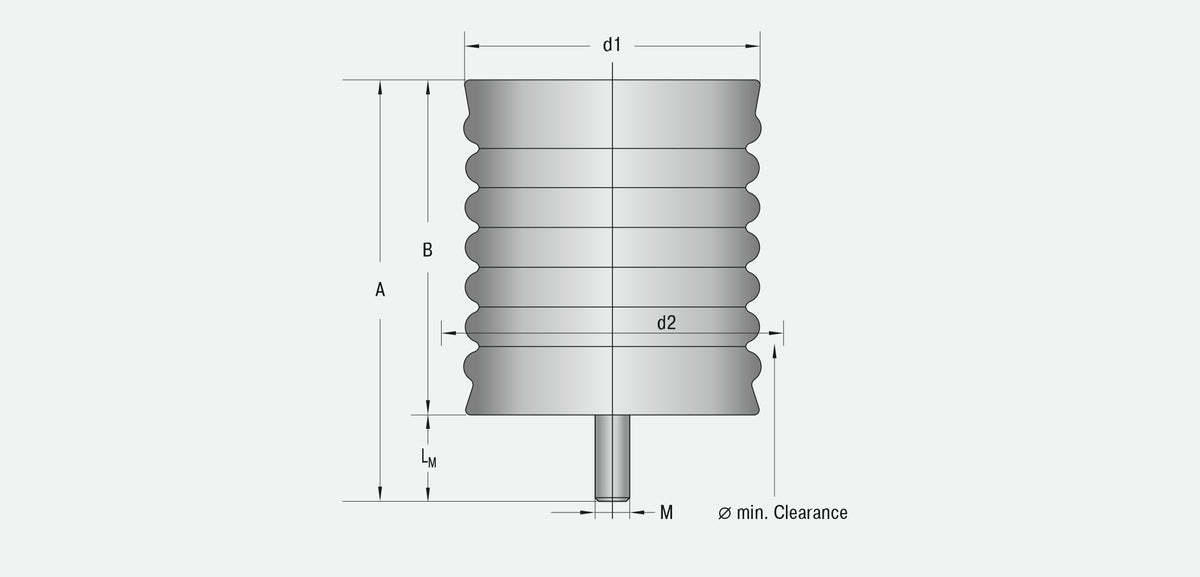

Stroke: 3.15 inch
A: 6.30 inch
B: 5.28 inch
d1: 2.48 inch
d2: 2.83 inch
M: M16 inch
LM: 1.02 inch
Energy capacity emergency use: 49,564 in-lbs/cycle
Stroke: 3.15 inch
Energy absorption: 98 %
Reacting Force: 20,682 lbs
Standard colour: Ruby red RAL 3003
Construction size: 2.48 in
Material: Outer body: Steel
Mounting: In any position
Impact velocity range: max. 5 m/s
