ACE Controls AS3/8X1 Miniature Shock Absorbers 125-0301
Miniature Shock Absorbers
AS3/8X1 Miniature adjustable shock delivers convenience Adjustable
Energy capacity 600 in-lbs/cycle
Stroke 1.00 inch

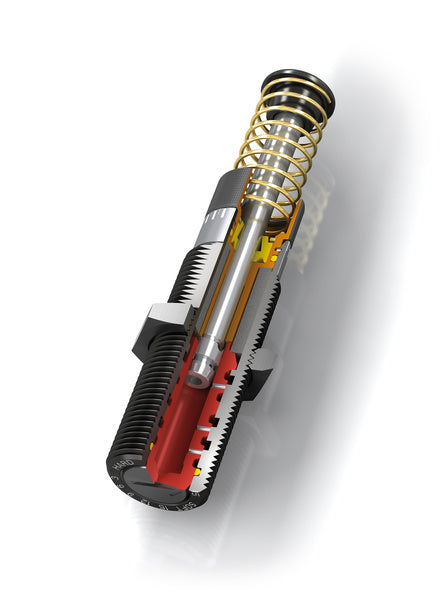

ACE Controls 3/8x1"ACE Controls AS3/8X1 Miniature Shock Absorbers 125-0301" bore adjustable miniature shock absorber offers high energy capacity and a wide effective weight range for handling a variety of applications. A unique feature of the multi-orifice 3/8x1"ACE Controls AS3/8X1 Miniature Shock Absorbers 125-0301" bore is the optional rear slot adjuster. Adjustment can be made by turning the front adjuster to the preferred setting, or by turning the rear slot adjuster if desired.
Available with side or rear adjustment, these 1"ACE Controls AS3/8X1 Miniature Shock Absorbers 125-0301" bore shock absorbers provide performance and convenience in one reliable package. Applications include: Slides, material handling equipment, robotics,machine tools, pick and place systems, packaging equipment and more.

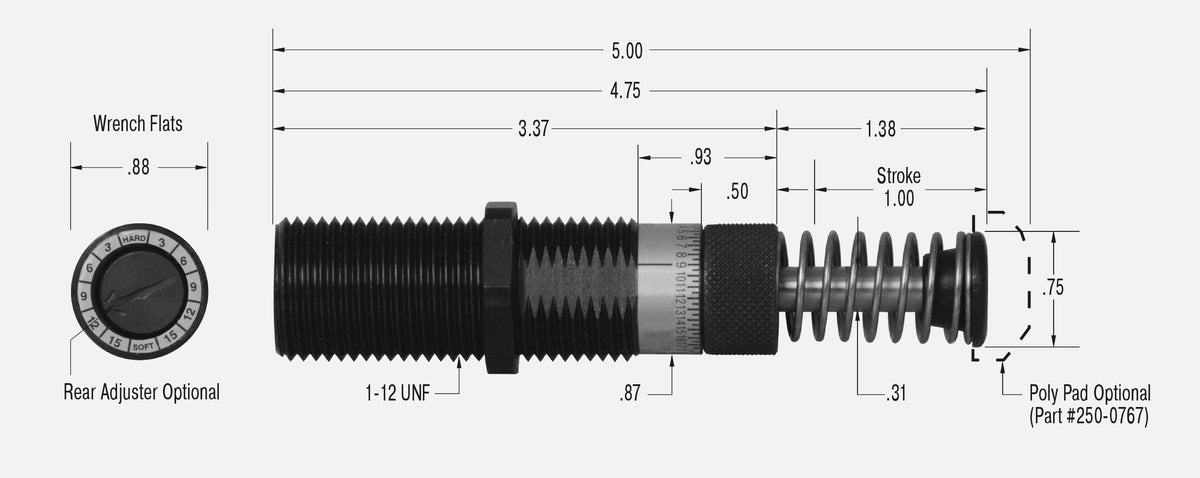

Stroke: 1.00 inch
M: 1-12 UNF inch
Energy capacity: 600 in-lbs/cycle
Energy capacity: 600,000 in-lbs/h
Effective weight min.: 10 lbs
Effective weight max.: 1,250 lbs
Return Force min.: 6 lbs
Return Force max.: 11 lbs
Return Time: 0.03 s
Side Load Angle max.: 5 °
Impact velocity range: 1.6 ft/sec to 15 ft/sec
Operating temperature range: 10 °F to 150 °F
Mounting: In any position. Clevis mounting available (NA 3/8x1)
Adjustment: Adjustment can be made by turning the front adjuster to the preferred setting, or by turning the rear slot adjuster if desired.
Material: Outer body, Accessories: Steel corrosion-resistant coating; Main bearing, Rod end button: Steel hardened; Piston rod: Steel hardened and chrome plated; Return spring: Steel; Locknut: Zinc plated steel
Damping medium: American 46
