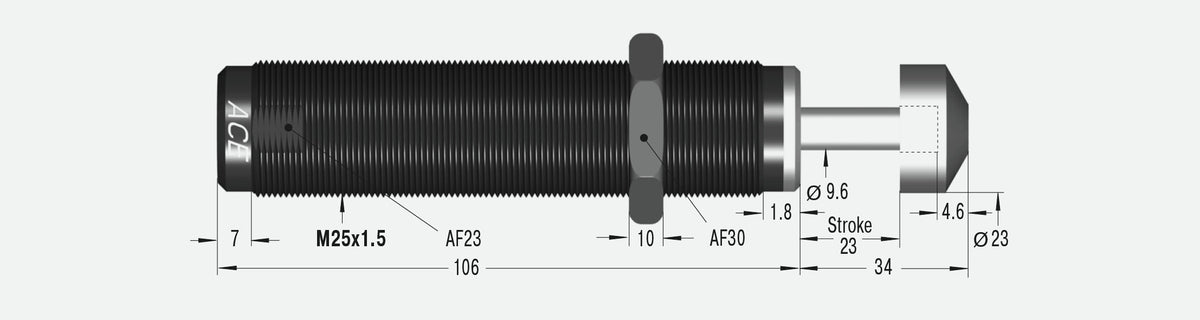

ACE Controls SC650M-8 Miniature Shock Absorbers 196-0103
ACE Controls SC650M-8 Miniature Shock Absorbers 196-0103

Brand: ACE Controls

ACE Controls SC650M-8 Miniature Shock Absorbers 196-0103

SKU: ACE-SC 650M-8
MPN: 196-0103

  • Save $7.94
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**

Looking for more ACE Controls products? Contact our Sales Team today.

*Please note, there is a $75 minimum for all ACE Controls product orders*

**All ACE Controls products are made-to-order and will require lead-time if not in stock at manufacturer**

ACE Controls SC650M-8 Miniature Shock Absorbers 196-0103

Piston tube design for maximum energy absorption

Self-compensating, Piston Tube Technology
Energy capacity per stroke 1860 in-lbs/cycle
Stroke 0.91 inch

Added safety with accumulator technology: The larger 'soft contact' models from the SC²300 to SC²650 are available with up to three times the energy absorption compared to similar sizes of standard shock absorbers SC190 to SC925, due to the ACE piston tube specialty. Furthermore, the membrane accumulator serves as a compensation element for the oil displaced in the shock absorber and replaces the standard use of absorber materials. This increases process safety even further.

The shock absorbers, which are perfect for rotary actuators for example, are available in progressively stepped effective weight ranges with an integrated positive stop. They are maintenance-free and ready for direct installation. The side load adapter option allows impact angles of up to 25°. They offer soft contact deceleration where initial impact reaction forces are very low, with the advantages of self-compensation to react to changing energy conditions, without adjustment.

These miniature shock absorbers offer high performance levels with a long service life and are particularly popular for material handling, mounting very close to pivots and automation tasks.

Technical Data

Energy capacity per stroke 1860 in-lbs/cycle
Energy capacity per hour 600000 in-lbs/h
Effective Weight 1,700 to 5,800 lbs
Hardness -8
Return Force 2.4 to 7.3 lbs
Return Time 0.3 s
Side load angle max. 5 °
Impact velocity range 0.3 to 12 ft/s
Operating temperature range 32 to 150 °F
Mounting In any position
Positive stop Integrated
Damping medium Oil, temperature stable
Rod Button with rod button

Material

Outer body Steel corrosion-resistant coating
Piston rod Hardened stainless steel
Accessories Hardened steel and corrosion-resistant coating
