ACE CONTROLS SC 650M7-HC MINIATURE SHOCK ABSORBER 196-0159

Brand: ACE Controls

ACE CONTROLS SC 650M7-HC MINIATURE SHOCK ABSORBER 196-0159

SKU: ACE-SC 650M7-HC
MPN: 196-0159

  • Save $8.18
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Looking for more ACE Controls products? Contact our Sales Team today.

*Please note, there is a $75 minimum for all ACE Controls product orders*

ACE CONTROLS SC 650M7-HC MINIATURE SHOCK ABSORBER 196-0159

Miniature Shock Absorbers
SC650M-7-HC

Miniature self compensating shocks for high-speed applications

Self-Compensating
Energy capacity 1,200 in-lbs/cycle
Stroke 0.59 inch

SC25-HC to SC650-HC high cycle shock absorbers are engineered for high-speed equipment applications. These rugged performers are ideal for the packaging industry. They offer a short stroke, quick time through stroke and quick rod-ready time. In addition, these dependable self-compensating miniatures are capable of rapid repeat strokes. The result is faster cycling for your equipment and gains in production time for you.

Self-compensating shock absorbers react to changing energy conditions, without adjustment.

These miniature, self-compensating shock absorbers provide high-speed performance and reliability in a compact footprint. Applications include: Packaging equipment, slides, rotary actuators, small and medium robotics, machine tools, pick and place operations and more.
SC650M-7-HC

Technical Data

Energy capacity 1,200 in-lbs/cycle

Energy capacity 600,000 in-lbs/h

Effective weight min. 700 lbs

Effective weight max. 2,400 lbs

Hardness -7

Return Force min. 4.94 lbs

Return Force max. 8.30 lbs

Return Time 0.3 s

Side Load Angle max. 5 °

Impact velocity range 0.21 ft/sec to 11.34 ft/sec

Operating temperature range 32 °F to 150 °F

Mounting In any position

Positive stop Integrated

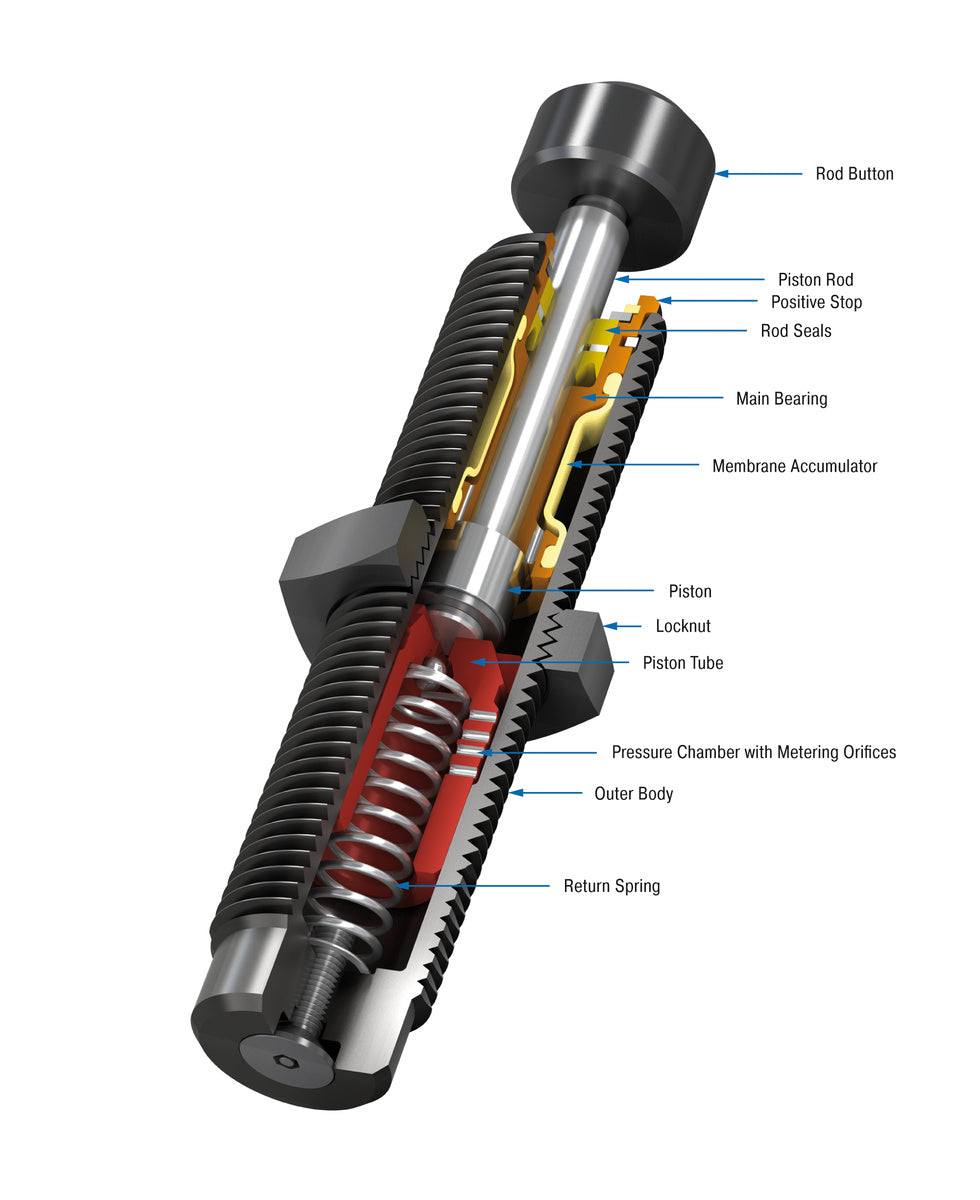

Material Outer body: Steel corrosion-resistant coating; Main bearing: Brass; Piston rod: Steel hardened; Locknut, Accessories: Steel; Rolling diaphragm: Rubber (EPDM); Stretch diaphragm: Rubber (nitrile)

Damping medium SF 96-500 and others
