Brand: DESTACO

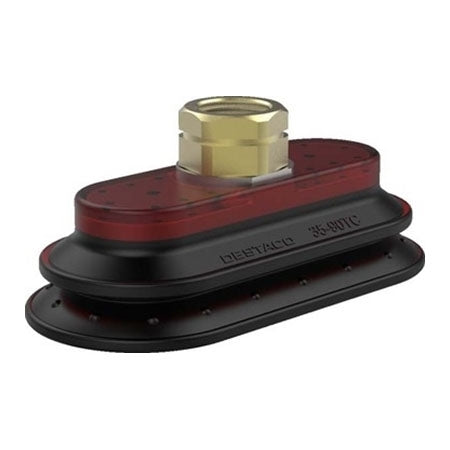

DESTACO VC-35-90TC-G38-PU55 ACCELERATE POLYURETHANE BELLOWS VACUUM CUP, OVAL, 35x90, 3/8G, RED PU55

SKU: DE-STA-CO-VC-35-90TC-G38-PU55
MPN: VC-35-90TC-G38-PU55

$54.88
Unit price per
Save $6.33

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Introducing the DESTACO VC-35-90TC-G38-PU55 ACCELERATE POLYURETHANE BELLOWS VACUUM CUP - the ultimate solution for your lifting needs. Made from long-lasting polyurethane and featuring high-friction, anti-slip treading, these cups offer an outstanding sealing capability, a fast and firm grip, and incredible shape memory retention. With the ability to work on both flat and contoured parts, and a maximum lifting capacity in limited spaces, these oval-shaped cups are flexible enough to accommodate minor misalignments. Weighing only 97 grams and measuring 105mm in length and 33mm in width, these cups are perfectly suited for your lifting needs. So don't wait, grab your DESTACO VC-35-90TC-G38-PU55 ACCELERATE POLYURETHANE BELLOWS VACUUM CUP now and see the difference for yourself!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO VC-35-90TC-G38-PU55 ACCELERATE POLYURETHANE BELLOWS VACUUM CUP, OVAL, 35x90, 3/8G, RED PU55

Product Details

The Accelerate® vacuum cups are made of durable long-lasting polyurethane and feature high-friction, anti-slip treading. This material and tread combination gives these cups an excellent sealing capability with a fast firm grip, a long shelf life, and improved shape memory retention.

Works well on flat and contoured parts
Maximum lifting capacity where limited space is available
Bellows add flexibilty for minor misalignments

Holding Capacity - Horizontal Dry (kg)	18.1
Holding Capacity - Horizontal Dry (lbf)	40.0
Holding Capacity - Horizontal Wet (kg)	15.4
Holding Capacity - Horizontal Wet (lbf)	34.0
Holding Capacity - Vertical Lift (kg)	20.4
Holding Capacity - Vertical Lift (lbf)	45
Weight (g)	97.0
Weight (oz)	3.4
Length (mm)	105.0
Length (in)	4.130
Width (mm)	33.0
Width (in)	1.300
Material	Polyurethane
Durometer	55 (Red Transparent)
Mount	3/8 G
Temperature Range	50° - 120° F (10° - 49° C)
Shape	Oval
Product Type	Bellows
Cup Size	35 x 90 mm
Product Series Description	Nitrile Rubber
