Brand: DESTACO

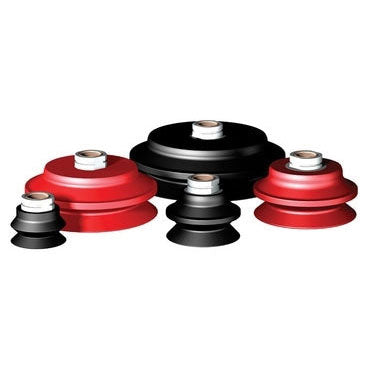

DESTACO CPI-50AC-B-45 AC/BT - ROUND BELLOWS VACUUM CUP BEL 5in. B-MT RED
SKU: DE-STA-CO-CPI-50AC-B-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience superior performance and reliability with the DESTACO CPI-50AC-B-45 AC/BT Round Bellows Vacuum Cup. With a 5-inch diameter and moderate compression distance, these single bellows cups are perfect for moderately flat, dry surfaces and can accommodate minor misalignments. The vertical weight capacity of 62.6kg (138 lbf) and horizontal weight capacity of 24.0kg (53 lbf) in dry conditions makes it a versatile choice for a wide range of applications. The durable nitrile material with a durometer of 45 (red) ensures long-lasting use, while the 3/8" NPT mounting option makes installation a breeze. Don't settle for less, choose the best with the DESTACO CPI-50AC-B-45 AC/BT Round Bellows Vacuum Cup.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-50AC-B-45 AC/BT - ROUND BELLOWS VACUUM CUP BEL 5in. B-MT RED
Product Details
General purpose single bellows vacuum cups best used on moderately flat, dry surfaces
- Moderate compression distance allows for minor misalignments
| Holding Capacity - Horizontal Dry (kg) | 24.0 |
| Holding Capacity - Horizontal Dry (lbf) | 53.0 |
| Holding Capacity - Horizontal Wet (kg) | 6.8 |
| Holding Capacity - Horizontal Wet (lbf) | 15.0 |
| Holding Capacity - Vertical Lift (kg) | 62.6 |
| Holding Capacity - Vertical Lift (lbf) | 138 |
| Weight (g) | 232.0 |
| Weight (oz) | 8.2 |
| Diameter (mm) | 127.0 |
| Diameter (in) | 5.000 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 3/8" NPT |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Bellows |
| Cup Size | 5.00 in |
| Product Series Description | Nitrile Rubber |
