Brand: DESTACO

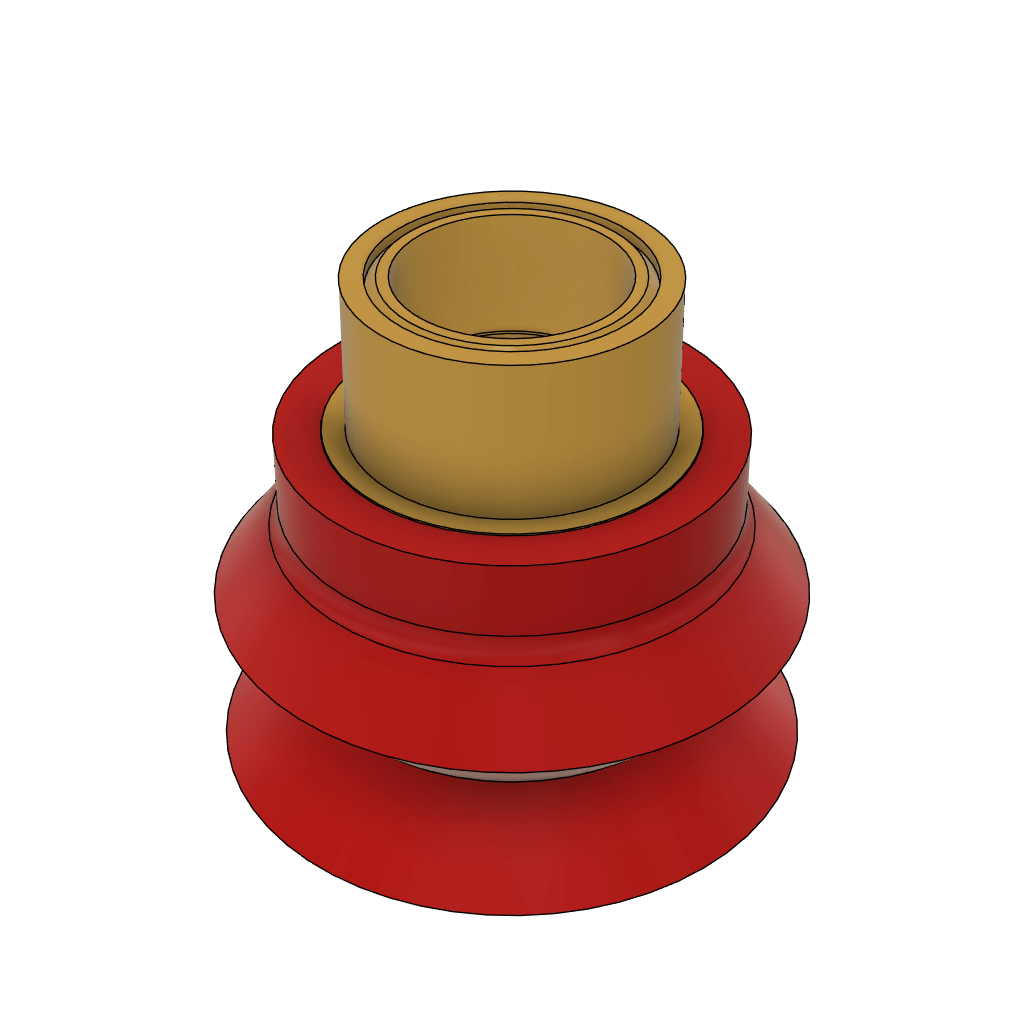

DESTACO CPI-15AC-B-45 AC/BT - ROUND BELLOWS VACUUM CUP BEL 1.5in. B-MT RED
SKU: DE-STA-CO-CPI-15AC-B-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO CPI-15AC-B-45 AC/BT - ROUND BELLOWS VACUUM CUP BEL 1.5in. B-MT RED - The ultimate solution for moderate compression and precise gripping on flat, dry surfaces! With a holding capacity of up to 2.7kg horizontally and 3.6kg vertically, this vacuum cup allows for minor misalignments and provides strong lifting power. Made of durable nitrile material with a 45 durometer (in bold red), and equipped with a 3/8" NPT mount, this 1.5in. cup is the perfect choice for all your general purpose vacuum cup needs. Plus, weighing only 35g, it's lightweight and easy to handle while providing reliable performance. Don't miss out on this versatile and high-quality product for all your vacuum cup needs!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-15AC-B-45 AC/BT - ROUND BELLOWS VACUUM CUP BEL 1.5in. B-MT RED
Product Details
General purpose single bellows vacuum cups best used on moderately flat, dry surfaces
- Moderate compression distance allows for minor misalignments
Holding Capacity - Horizontal Dry (kg) | 2.7 |
Holding Capacity - Horizontal Dry (lbf) | 6.0 |
Holding Capacity - Horizontal Wet (kg) | 1.4 |
Holding Capacity - Horizontal Wet (lbf) | 3.0 |
Holding Capacity - Vertical Lift (kg) | 3.6 |
Holding Capacity - Vertical Lift (lbf) | 8 |
Weight (g) | 35.0 |
Weight (oz) | 1.2 |
Diameter (mm) | 41.1 |
Diameter (in) | 1.620 |
Material | Nitrile |
Durometer | 45 (Red) |
Mount | 3/8" NPT |
Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
Shape | Round |
Product Type | Bellows |
Cup Size | 1.50 in |
Product Series Description | Nitrile Rubber |
