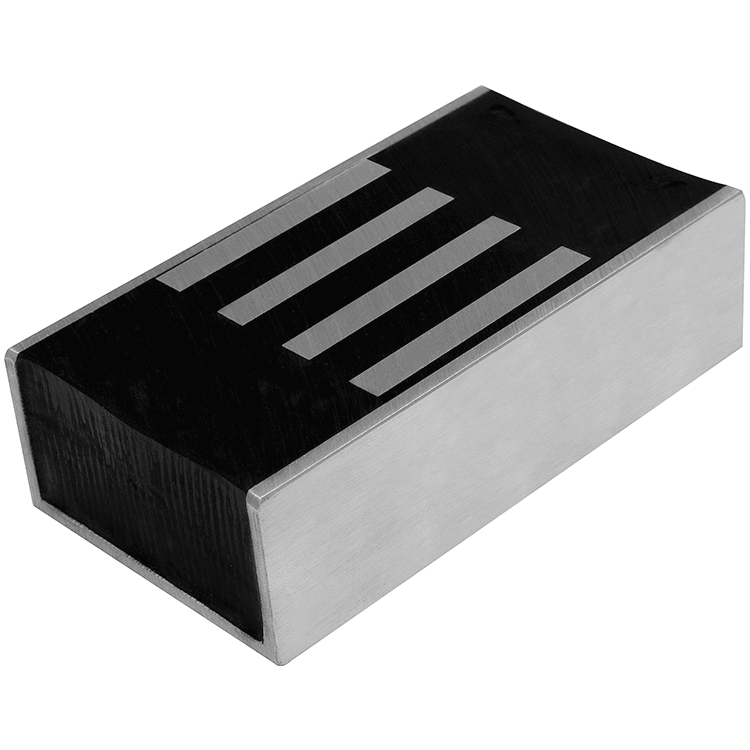

Industrial Magnetics MAG-MATE® Ceramic-5 Assembly 1-1/4X2-1/2X4-1/2 Lg AC2302
SKU: IM-AC2302
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE® Ceramic-5 Assembly 1-1/4X2-1/2X4-1/2 Lg AC2302. Rectangular Horseshoe Type Magnet Assemblies. Perfect magnets for fixturing and holding in your applications!*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® Ceramic-5 Assembly 1-1/4X2-1/2X4-1/2 Lg AC2302
B: Ceramic magnet, 2 or 3-Pole assembly potted in an aluminum housing. Effective for holding heavy parts & holding against shear forces. Supplied without mounting holes, they can be drilled, tapped, milled, etc. on either end of the magnet. Maximum temperature is 180°F (82°C)
| Rectangular Horseshoe Magnet Assemblies | ||||||||
| Part Number | Hold - lbs (kg) | Thickness (in) | Width (in) | Length (in) | Number of Poles | Weight (lbs) | ||
|---|---|---|---|---|---|---|---|---|
| AC2100 | 22.5 (10.21) | 1-1/4 | 1 | 4-1/2 | 2 | 0.64 | ||
| AC2101 | 27.5 (12.48) | 1-1/4 | 1 | 4-1/2 | 2 | 0.65 | ||
| AC2102 | 32.5 (14.75) | 1-1/4 | 1 | 4-1/2 | 2 | 0.66 | ||
| AC2103 | 37.5 (17.01) | 1-1/4 | 1-1/4 | 4-1/2 | 2 | 0.84 | ||
| AC2201 | 55.0 (24.95) | 1-1/4 | 1-1/4 | 4-1/2 | 3 | 0.88 | ||
| AC2203 | 65.0 (29.49) | 1-1/4 | 1-7/8 | 4-1/2 | 3 | 1.19 | ||
| AC2204 | 75.0 (34.02) | 1-1/4 | 1-7/8 | 4-1/2 | 3 | 1.28 | ||
| AC2303 | 115.5 (52.39) | 1-1/4 | 2-1/2 | 4-1/2 | 4 | 1.75 | ||
| AC2102R | 92.5 (41.96) | 1-1/4 | 1 | 4-1/2 | 2 | 0.66 | ||
| AC2103R | 107.5 (48.76) | 1-1/4 | 1-1/4 | 4-1/2 | 2 | 0.84 | ||
| AC2204R | 170.0 (77.11) | 1-1/4 | 1-7/8 | 4-1/2 | 3 | 1.28 | ||
| Hole Centers (in) | ||||||||
| LP2100 | 12.5 (5.67) | 3/8 | 1-3/8 | 3-1/4 | 2-5/8 | 0.10 | ||
| LP2100R | 43.5 (19.73) | 3/8 | 1-3/8 | 3-1/4 | 2-5/8 | 0.20 | ||
| LP2101 | 13.5 (6.12) | 7/16 | 1-3/8 | 3-1/4 | 2-5/8 | 0.30 | ||
| LP2102 | 14.5 (6.58) | 7/16 | 1-3/8 | 3-1/4 | 2-5/8 | 0.30 | ||
| LP2103 | 15.5 (7.03) | 9/16 | 1-3/8 | 3-1/4 | 2-5/8 | 0.30 | ||
| 5C2565 | 17.5 (7.94) | 1 | 1-5/8 | 2 | 1-1/2 | 0.20 | ||
| SS2103 | 10.0 (4.54) | 5/8 | 1-1/8 | 3-5/8 | 2-7/8 | 0.10 | ||
| SS2100 | 15.0 (6.81) | 5/8 | 1-5/8 | 3-5/8 | 2-7/8 | 0.30 | ||
| MX10354 | 32.0 (14.52) | 5/8 | 1/2 | 3 | 2-1/2 | 0.10 | ||
| BP0040 | 40.0 (18.14) | 1-3/8 | 7/8 | 3-1/4 | 2-3/4 | 0.55 | ||
| BP0060 | 60.0 (27.21) | 1-3/8 | 1-1/4 | 3-1/4 | 2-3/4 | 0.70 | ||
| BP0120 | 120.0 (54.43) | 1-3/8 | 1-1/4 | 5-1/4 | 4-1/2 | 1.35 | ||
| BP0250 | 250.0 (113.39) | 2-1/4 | 1-7/8 | 5-1/4 | 4-1/2 | 3.25 | ||
| MX0477 | 14.0 (6.35) | 3/16 | 9/16 | 1-3/4 | 1.47 | 0.10 | ||
| LC2360 | 9.0 (4.09) | 9/16 | 1 | 2-1/2 | 2 | 0.20 | ||
| LC2361 | 21.0 (9.53) | 9/16 | 1 | 4-1/2 | 4 | 0.40 | ||
| LC2362 | 29.0 (13.16) | 9/16 | 1 | 6-1/2 | 6 | 0.60 | ||
| LC2363 | 60.0 (27.22) | 9/16 | 1 | 12-1/2 | 12 | 1.30 | ||
| LC2364 | 88.0 (39.92) | 9/16 | 1 | 18-1/2 | 18 | 1.80 | ||
| MQ1129 | 25.0 (11.34) | 11/32 | 1-1/2 | 12 | 11 | 1.12 | ||
| MQ1130 | 63.0 (28.58) | 5/8 | 1-1/2 | 12 | 11 | 1.62 | ||
| MQ1132 | 150.0 (68.04) | 5/8 | 2-1/2 | 12 | 11 | 2.74 | ||
