Brand: Iscar

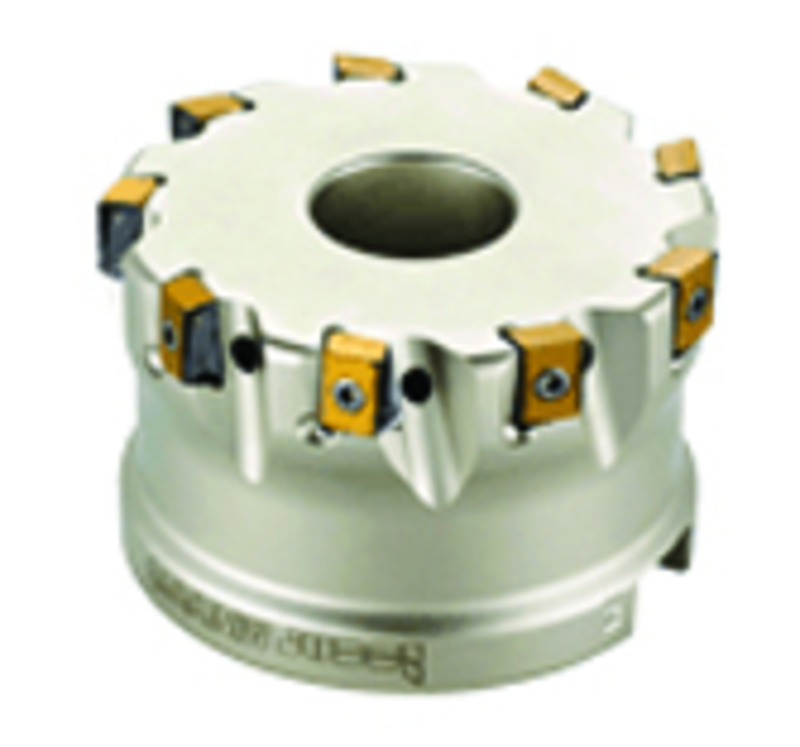

Iscar EH3104900 T490 FLN D1.50-6-.75-08
SKU: FTS-EH3104900
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3104900 T490 FLN D1.50-6-.75-08Full Description
| Cutting Diameter (DC/DCX) | 1-1/2" | Master Insert Identification (MIID) | T490 LNMT 0804PNR |
| Cutting Diameter (DC) | 1-1/2" | Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.315" | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4" | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 1.57" | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.44" | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Family Description
HELITANG T490 Line, 90° face mills using T490 LNMT/LNHT 08... tangentially clamped inserts with 4 helical, .315" long cutting edges.
When machining slots, regular pitch cutters should be used
