Brand: Iscar

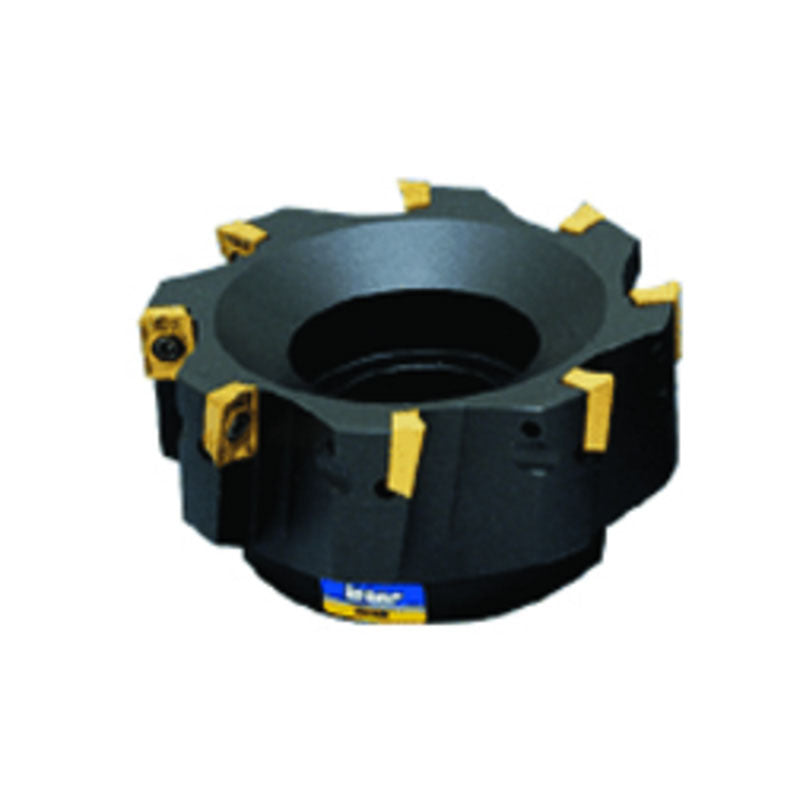

Iscar EH3102119 HM90 F90A D2.50-6-1.00
SKU: FTS-EH3102119
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3102119 HM90 F90A D2.50-6-1.00Full Description
| Cutting Diameter (DC/DCX) | 2-1/2" | Arbor Style | A |
| Cutting Diameter (DC) | 2-1/2" | Master Insert Identification (MIID) | ADKT 1505PDTR |
| Cutting Diameter Maximum (DCX) | 2-1/2" | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.56" | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1" | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4" | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.33" | Tool Type | 90° Facemills |
Family Description
HELI2000, 90° face mills carrying HM90 ADKT 1505... inserts.
For adaptation, click on "More Info"
