Brand: JW Winco

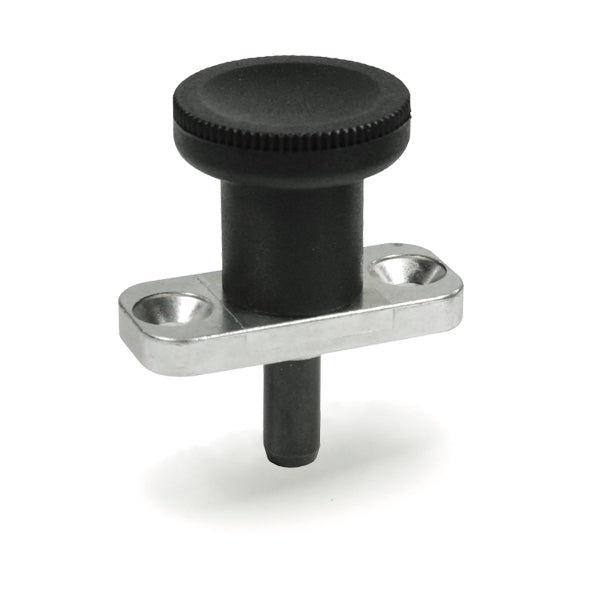

JW WINCO GN608.1-8-8 INDEXING PLUNGER LOCK OUT - 8W8L90
SKU: JW-8W8L90
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN608.1-8-8 INDEXING PLUNGER LOCK OUT - 8W8L90GN 608.1 indexing plunger is used in applications which require surface mounting, and the plunger has to stay in its retracted position.
Knob Material: Plastic
Plunger Pin: Steel
Zinc Die-Cast Plate
GN608.1 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN608.1-8-8 INDEXING PLUNGER LOCK OUT - 8W8L90
GN 608.1 indexing plunger is used in applications which require surface mounting, and the plunger has to stay in its retracted position.
Knob Material: Plastic
Plunger Pin: Steel
Plate: Zinc Die-Cast
Locking: Lock-Out
Plunger Dia.: 8 mm
Knob Dia.: 31 mm
Plunger Length: 8 mm
Overall Length: 44 mm
Plate Length: 20 mm
Plate Width: 46 mm
Initial Load: 13 N
End Load: 26 N
Axial Load: 500 N
