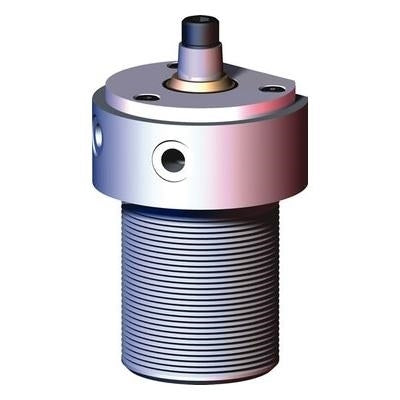

DESTACO 89E63-008-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC

SKU: DE-STA-CO-89E63-008-2R
MPN: 89E63-008-2R

$725.32
Unit price per
Save $47.26

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO 89E63-008-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC offers proven and reliable designs for a wide range of applications, such as welding and assembly. With its lightweight and robust construction, it can handle several million cycles and delivers a maximum operating pressure of 8 bar (120 psi). In addition, the clamping arm can be rotated 360 degrees for versatility. Please note that the clamp arms and accessories are sold separately. This high-performing clamp can be mounted in either a tapped hole or a through hole for recessed mounting. The 26.0 mm stroke (1.020 inch) and 63 mm cylinder bore (2.48 inches) provide a clamping force of 1,430 N (321 lbf) at 5 bar (72 psi). The air port size is G-1/4.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 89E63-008-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Metric threaded bodies can be mounted in a tapped hole or a through hole for recessed mounting. The clamping arm can be positioned 360 degrees radially.

Lightweight and robust, designed for several million cycles
Clamp arms and accessories sold separately
Maximum operating pressure 8 bar (120 psi)

Stroke (mm)	26.0
Stroke (in)	1.020
Cylinder Bore (mm)	63
Cylinder Bore (in)	2.48
Clamping Force @ 5Bar[72Psi] (N)	1,430
Clamping Force @ 5Bar[72Psi] (lbf.)	321
Mount	Threaded Body
Replacement Seal Kit	89B/E63-2-00
Swing Direction	RH
Air Port size	G-1/4
Air Consumption (per double stroke at 5 bar) (dm³)	1.080
Air Consumption (per double stroke at 7 psi) (in³)	0.038
Stroke during rotation (mm)	18.0
Stroke during rotation (in)	0.71
Vertical clamp stroke (mm)	8.0
Vertical clamp stroke (in)	0.32
Sensor Ready	No
Weight (kg)	1.67
Weight (lb)	3.68
Product Series Description	Swing Clamp
