Brand: DESTACO

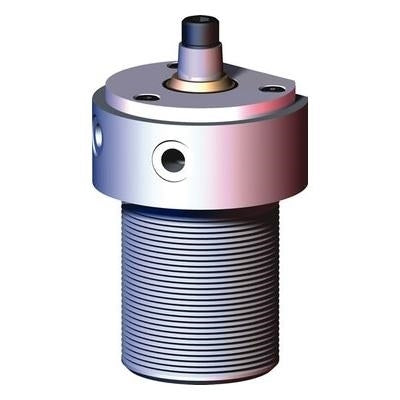

DESTACO 89E50-025-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC

SKU: DE-STA-CO-89E50-025-2R
MPN: 89E50-025-2R

$685.38
Unit price per
Save $44.67

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO 89E50-025-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC offers a proven and reliable design that is perfect for a wide range of applications, including welding and assembly. The metric threaded body allows for either tapped hole or through hole mounting, while the 360 degree radial positioning of the clamping arm adds versatility. This lightweight and durable product is designed for long-lasting use, with a maximum operating pressure of 8 bar (120 psi) and a clamping force of 1,000 N (225 lbf) at 5 bar (72 psi). The stroke measures 40.0 mm (1.570 in) and the cylinder bore is 50 mm (1.97 in). Please note that the clamp arms and accessories are sold separately. The air port size is G-1/8 and swing direction is right handed.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 89E50-025-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Metric threaded bodies can be mounted in a tapped hole or a through hole for recessed mounting. The clamping arm can be positioned 360 degress radially.

Lightweight and robust, designed for several million cycles
Clamp arms and accessories sold separately
Maximum operating pressure 8 bar (120 psi)

Stroke (mm)	40.0
Stroke (in)	1.570
Cylinder Bore (mm)	50
Cylinder Bore (in)	1.97
Clamping Force @ 5Bar[72Psi] (N)	1,000
Clamping Force @ 5Bar[72Psi] (lbf.)	225
Mount	Threaded Body
Replacement Seal Kit	89B/E50-2-00
Swing Direction	RH
Air Port size	G-1/8
Air Consumption (per double stroke at 5 bar) (dm³)	1.030
Air Consumption (per double stroke at 7 psi) (in³)	0.036
Stroke during rotation (mm)	15.0
Stroke during rotation (in)	0.59
Vertical clamp stroke (mm)	25.0
Vertical clamp stroke (in)	0.98
Sensor Ready	No
Weight (kg)	1.46
Weight (lb)	3.22
Product Series Description	Swing Clamp
