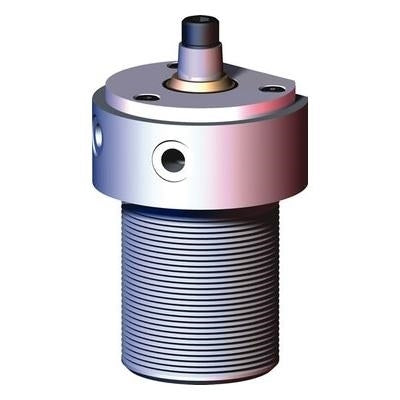

DESTACO 89E40-010-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC

Brand: DESTACO

DESTACO 89E40-010-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC

SKU: DE-STA-CO-89E40-010-2R
MPN: 89E40-010-2R

  • $562.86
    Unit price per
  • Save $36.69
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Passionate about the value of DESTACO's 89E40-010-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC? Look no further for a reliable and proven design that can be used for various applications such as welding and assembly. The lightweight and robust threaded body can be mounted in a tapped hole or a through-hole, with a 360 degree radial positioning of the clamping arm. With a maximum operating pressure of 8 bar (120 psi) and a clamping force of 580 N (130 lbf) at 5 bar (72 psi), this clamp is designed to withstand millions of cycles. Choose the Right Hand swing direction with an AirPort size of G-1/8.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 89E40-010-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Metric threaded bodies can be mounted in a tapped hole or a through-hole for recessed mounting. The clamping arm can be positioned 360 degress radially.

  • Lightweight and robust, designed for several million cycles
  • Clamp arms and accessories sold separately
  • Maximum operating pressure 8 bar (120 psi)
Stroke (mm) 24.0
Stroke (in) 0.940
Cylinder Bore (mm) 40
Cylinder Bore (in) 1.57
Clamping Force @ 5Bar[72Psi] (N) 580
Clamping Force @ 5Bar[72Psi] (lbf.) 130
Mount Threaded Body
Replacement Seal Kit 89B/E40-2-00
Swing Direction RH
AirPort size G-1/8
Air Consumption (per double stroke at 5 bar) (dm³) 0.390
Air Consumption (per double stroke at 7 psi) (in³) 0.014
Stroke during rotation (mm) 14.0
Stroke during rotation (in) 55.00
Vertical clamp stroke (mm) 10.0
Vertical clamp stroke (in) 0.39
Sensor Ready No
Weight (kg) 0.80
Weight (lb) 1.76
Product Series Description Swing Clamp
