Brand: DESTACO

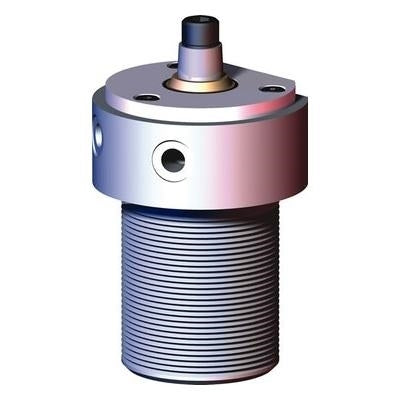

DESTACO 89E32-010-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC
SKU: DE-STA-CO-89E32-010-2R
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the power of the DESTACO 89E32-010-2R THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC. Designed with proven reliability, this versatile tool is perfect for a wide range of applications including welding and assembly. With the ability to be mounted in either a tapped hole or through-hole, and a 360 degree radial positioning, this lightweight and robust clamp is capable of withstanding several million cycles. Operating pressure of 8 bar (120 psi) and a stroke of 21.0 mm (0.830 in) with a cylinder bore of 32 mm (1.25 in). With a clamping force of 350 N (79 lbf.) at 5 bar (72 psi), the Right Hand swing direction and G-1/8 air port size make this an essential tool for any workshop. Don't wait, upgrade to the DESTACO 89E32 pneumatic swing clamp today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 89E32-010-2R - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC
Product Details
These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Metric threaded bodies can be mounted in a tapped hole or through-hole for recessed mounting. The clamping arm can be positioned 360 degress radially.
- Lightweight and robust, designed for several million cycles
- Clamp arms and accessories sold separately
- Maximum operating pressure 8 bar (120 psi)
| Stroke (mm) | 21.0 |
| Stroke (in) | 0.830 |
| Cylinder Bore (mm) | 32 |
| Cylinder Bore (in) | 1.25 |
| Clamping Force @ 5Bar[72Psi] (N) | 350 |
| Clamping Force @ 5Bar[72Psi] (lbf.) | 79 |
| Mount | Threaded Body |
| Replacement Seal Kit | 89B/E32-2-00 |
| Swing Direction | RH |
| Air Port size | G-1/8 |
| Air Consumption (per double stroke at 5 bar) (dm³) | 0.220 |
| Air Consumption (per double stroke at 7 psi) (in³) | 0.008 |
| Stroke during rotation (mm) | 11.0 |
| Stroke during rotation (in) | 0.43 |
| Vertical clamp stroke (mm) | 10.0 |
| Vertical clamp stroke (in) | 0.39 |
| Sensor Ready | No |
| Weight (kg) | 0.42 |
| Weight (lb) | 0.93 |
| Product Series Description | Swing Clamp |
