Brand: DESTACO

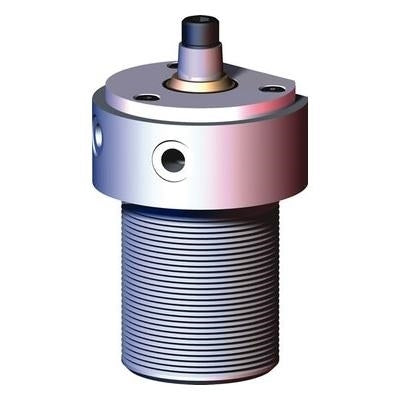

DESTACO 89E32-010-2L - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC
SKU: DE-STA-CO-89E32-010-2L
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the exceptional quality and versatility of the DESTACO 89E32-010-2L - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC. This powerful tool is perfect for a wide range of tasks, including welding and assembly. The metric threaded body makes mounting a breeze, allowing for both tapped and through hole options. With a 360 degree radial clamping arm, you have complete control and flexibility. Durable and designed for millions of cycles, this clamp is a reliable choice. Accessories and clamp arms sold separately. Boasting a maximum operating pressure of 8 bar (120 psi), a 21.0 mm (0.830 in) stroke, and a 32 mm (1.25 in) cylinder bore, this clamp has a clamping force of 350 N (79 lbf) at 5 bar (72 psi).
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 89E32-010-2L - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - METRIC
Product Details
These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Metric threaded bodies can be mounted in a tapped hole or athrough hole for recessed mounting. The clamping arm can be positioned 360 degress radially.
- Lightweight and robust, designed for several million cycles
- Clamp arms and accessories sold separately
- Maximum operating pressure 8 bar (120 psi)
Stroke (mm) | 21.0 |
Stroke (in) | 0.830 |
Cylinder Bore (mm) | 32 |
Cylinder Bore (in) | 1.25 |
Clamping Force @ 5Bar[72Psi] (N) | 350 |
Clamping Force @ 5Bar[72Psi] (lbf.) | 79 |
Mount | Threaded Body |
Replacement Seal Kit | 89B/E32-2-00 |
Swing Direction | LH |
Air Port size | G-1/8 |
Air Consumption (per double stroke at 5 bar) (dm³) | 0.220 |
Air Consumption (per double stroke at 7 psi) (in³) | 0.008 |
Stroke during rotation (mm) | 11.0 |
Stroke during rotation (in) | 0.43 |
Vertical clamp stroke (mm) | 10.0 |
Vertical clamp stroke (in) | 0.39 |
Sensor Ready | No |
Weight (kg) | 0.42 |
Weight (lb) | 0.93 |
Product Series Description | Swing Clamp |
