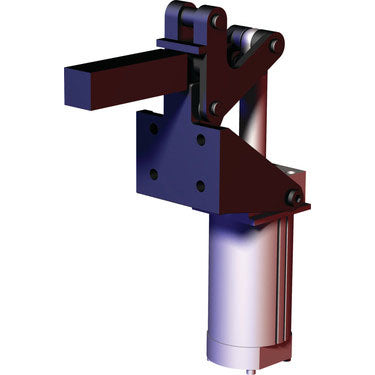

DESTACO 868 PNEUMATIC HOLD DOWN CLAMP

Brand: DESTACO

DESTACO 868 PNEUMATIC HOLD DOWN CLAMP

SKU: DE-STA-CO-868
MPN: 868

  • $716.62
    Unit price per
  • Save $137.84
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 868 PNEUMATIC HOLD DOWN TOGGLE CLAMP is an enhanced version of Destaco model 827, proven to be reliable and durable. Designed to secure perpendicular to the surface and equipped with a built-in flow control and magnetic ring piston for precise positioning. It accommodates both T-slot and round sensors, making it versatile and convenient. The hardened pins and bushing at pivotal points ensure a long lifecycle. The solid clamping arm can be easily customized to fit specific needs. It can hold a maximum capacity of 4,000 lbsf. The cylinder bore is 2.48 inches and the clamp arm length measures 4.690 inches. The air port size is 1/4 NPT and it has a height under clamp arm of 4.200 inches. Upgrade to the DESTACO 868 Pneumatic Toggle Clamp for superior holding power and user-friendly design!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 868 PNEUMATIC HOLD DOWN CLAMP

Larger version of model 827. Mounts perpendicular to the clamping surface. Features built in flow control for smooth operation and magnetic ring piston for position sensing. Accomodates either T-slot (8EA-109-1) or round (810169) sensors.

  • Hardened pins and bushing at all pivot points for long lifecycle
  • Large, solid clamping arm is easily modified to suit application requirements
  • Sensor ready for round or T-slot style sensors
  • Replacement Clamp Assembly: 868-LC
Maximum Holding Capacity (lbsf) 4,000
Clamp Arm Length (in) 4.690
Height Under Clamp Arm (in) 4.200
Cylinder Bore (in) 2.48
Clamp Arm Style solid
Air Port size 1/4 NPT
Application - Welding Excellent/High
Application - Assembly Excellent/High
Duty Cycle Excellent/High
Operating Temperature -10° to 90°C (-14° to 194° F)
Product Type Pneumatic Toggle Clamp
Exerting Force (lbf) 1,704
Air Consumption (ft³) 0.109
Replacement Seal Kit 850450-63-1-00
Weight (lb) 17.00
Product Series Description Toggle Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group standard pneumatic clamps
