Brand: JW Winco

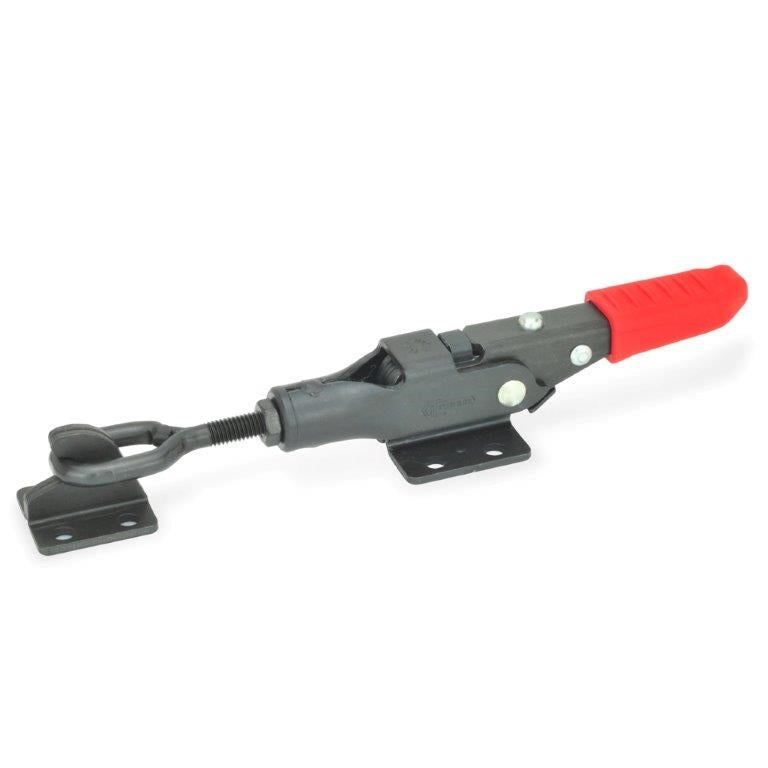

JW WINCO GN853-700-TG LATCH TOGGLE CLAMP
SKU: JW-853-700-TG
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN853-700-TG LATCH TOGGLE CLAMPLatch clamps GN 853 feature a locking mechanism which prevents an inadvertent or vibration-induced opening of the clamp. Another benefit is the ability to operate the clamp with one hand.
Steel Clamp Oval head latch bolt, with catch.
GN 853 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN853-700-TG LATCH TOGGLE CLAMP
Latch clamps GN 853 feature a locking mechanism which prevents an inadvertent or vibration-induced opening of the clamp. Another benefit is the ability to operate the clamp with one hand.
Clamp: Steel
Finish: Blackened
Latch Bolt: Steel
Type: Oval head latch bolt, with catch
Size: 700
Holding Capacity: 7500 N
Overall Length: 12.50"
Overall Height: 2.09"
Stroke: 0.75"
Thread Dia.: M10
Latch Bolt Length: 3.76"
Horizontal Mounting Hole Dist: 1.63"
Vertical Mounting Hole Dist: 1.50"
Catch Mounting Hole Dist: 1.22"
Mounting Hole Dia.: 0.33"
