Brand: JW Winco

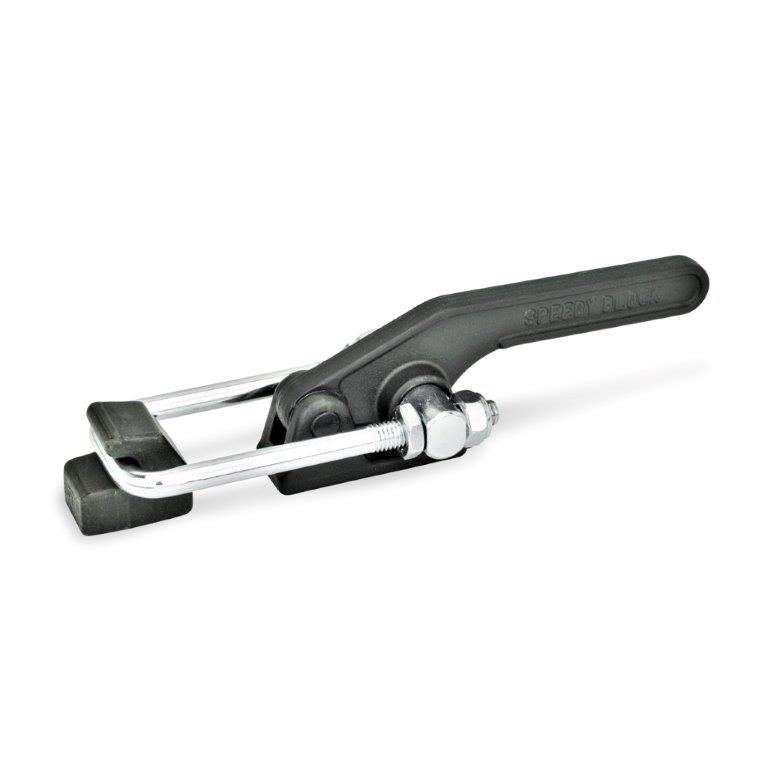

JW WINCO GN852-1700-T2S LATCH TOGGLE CLAMP
SKU: JW-852-1700-T2S
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN852-1700-T2S LATCH TOGGLE CLAMPGN 852 heavy duty latch type toggle clamps are used for very high holding forces, as may be required in plastic high pressure mold forming. The stroke of the U-bolt latch can be adjusted within its range.
Steel Clamp with U-bolt and catch.
GN 852 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN852-1700-T2S LATCH TOGGLE CLAMP
GN 852 heavy duty latch type toggle clamps are used for very high holding forces, as may be required in plastic high pressure mold forming. The stroke of the U-bolt latch can be adjusted within its range.
Clamp: Steel
Finish: Blackened
U-bolt Latch: Steel
Clamping Type: with U-bolt and catch
Mount: Weldable
Size: 1700
Holding Capacity: 17000 N
Overall Length: 8.58
Overall Height: 2.17
Stroke: 2.13
Adjustable Length: 0.59
Thread Dia.: M10
U-bolt Length: 3.78
Horizontal Mounting Hole Dist: -
Vertical Mounting Hole Dist: -
Catch Mounting Hole Dist: -
Mounting Hole Dia.: -
