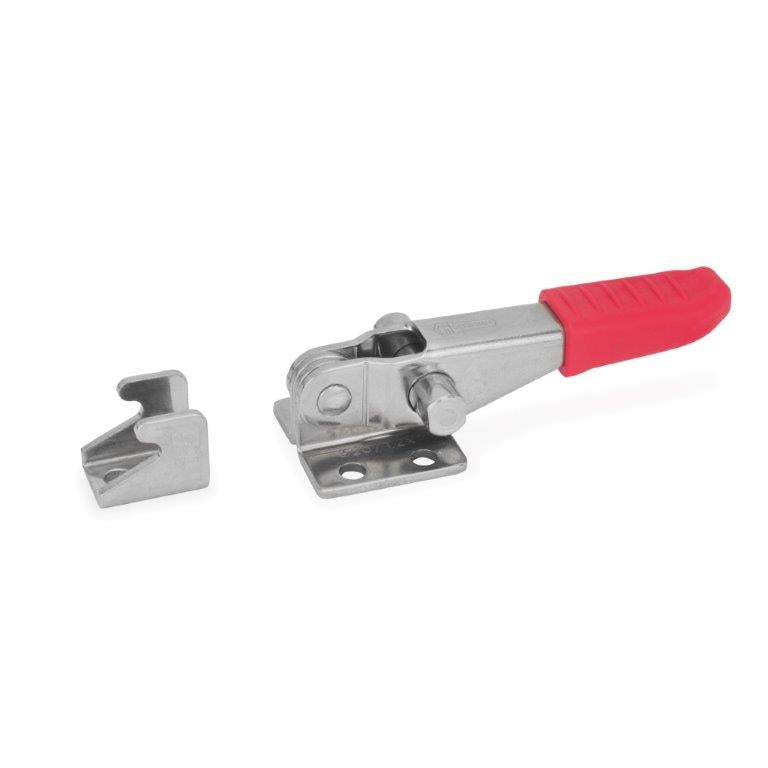

JW WINCO GN851-700-T-NI LATCH TOGGLE CLAMP
SKU: JW-851-700-T-NI
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN851-700-T-NI LATCH TOGGLE CLAMPThe stroke of the U-bolt latch of GN 851 latch type toggle clamps can be adjusted within its range. The circular movement of the handle is transformed into linear action of the latch. These clamps aremostly used to fasten hinged lids on containers. In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.
Stainless Steel Clamp without U-bolt, with catch.
GN 851 Standard Sheet
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN851-700-T-NI LATCH TOGGLE CLAMP
The stroke of the U-bolt latch of GN 851 latch type toggle clamps can be adjusted within its range. The circular movement of the handle is transformed into linear action of the latch. These clamps aremostly used to fasten hinged lids on containers. In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.
Clamp: Stainless Steel
Finish: Matte
U-bolt Latch: -
Hand Grip: Plastic
Clamping Type: without U-bolt, with catch
Size: 700
Holding Capacity: 7500 N
Overall Length: 8.66"
Overall Height: 1.65"
Stroke: 2.28"
Adjustable Length: 0.87"
Thread Dia.: M8
U-bolt Length: 2.91"
Horizontal Mounting Hole Dist: 1.63"
Vertical Mounting Hole Dist: 1.50"
Catch Mounting Hole Dist: 0.75"
Mounting Hole Dia.: 0.33"
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
