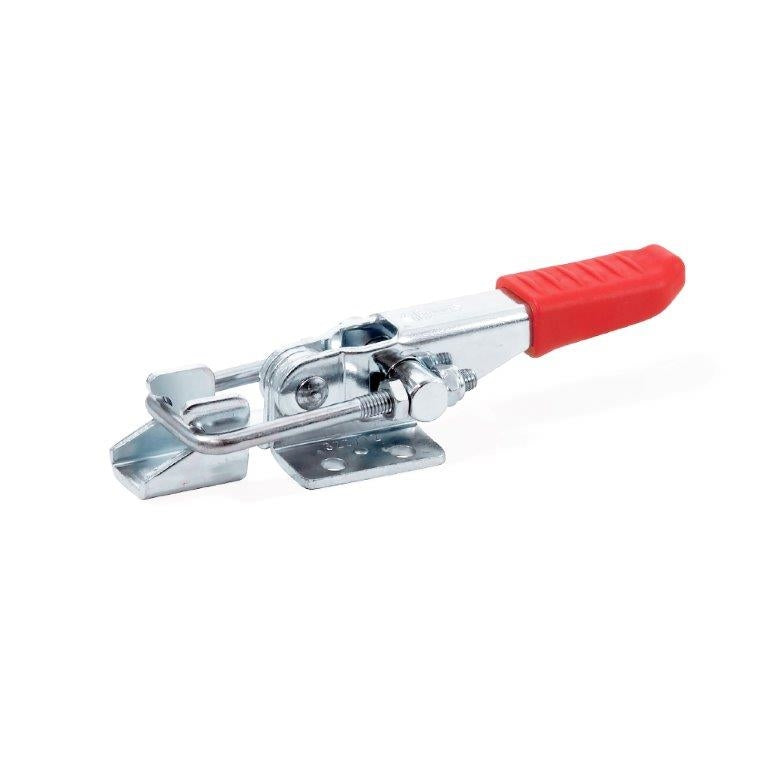

JW WINCO GN851-320-T2 LATCH TOGGLE CLAMP

Brand: JW Winco

JW WINCO GN851-320-T2 LATCH TOGGLE CLAMP

SKU: JW-851-320-T2
MPN: 851-320-T2

  • Save $0.40
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

JW WINCO GN851-320-T2 LATCH TOGGLE CLAMP
The stroke of the U-bolt latch of GN 851 latch type toggle clamps can be adjusted within its range. The circular movement of the handle is transformed into linear action of the latch. These clamps aremostly used to fasten hinged lids on containers. In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.
Steel Clamp with U-bolt and catch.
GN 851 Standard Sheet

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

JW WINCO GN851-320-T2 LATCH TOGGLE CLAMP

The stroke of the U-bolt latch of GN 851 latch type toggle clamps can be adjusted within its range. The circular movement of the handle is transformed into linear action of the latch. These clamps aremostly used to fasten hinged lids on containers. In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.

Clamp: Steel

Finish: Zinc plated

U-bolt Latch: Steel

Hand Grip: Plastic

Clamping Type: with U-bolt and catch

Size: 320

Holding Capacity: 3200 N

Overall Length: 5.98"

Overall Height: 1.18"

Stroke: 1.89"

Adjustable Length: 0.39"

Thread Dia.: M6

U-bolt Length: -

Horizontal Mounting Hole Dist: 0.75"

Vertical Mounting Hole Dist: 1.26"

Catch Mounting Hole Dist: 0.56"

Mounting Hole Dia.: 0.26"

GN 851 Standard Sheet
