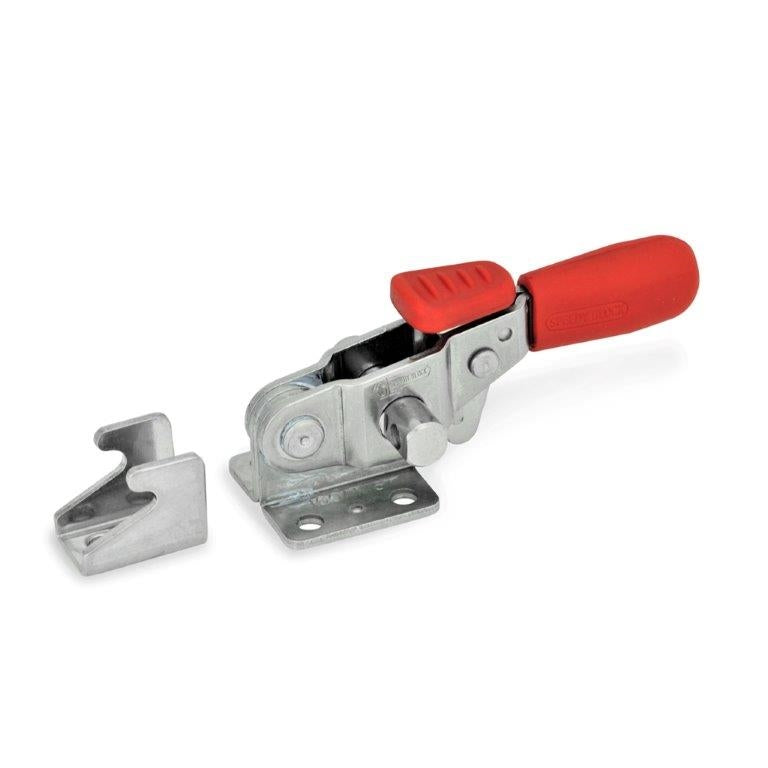

JW WINCO GN851.3-700-T-A4 LATCH TOGGLE CLAMP

Brand: JW Winco

JW WINCO GN851.3-700-T-A4 LATCH TOGGLE CLAMP

SKU: JW-851.3-700-T-A4
MPN: 851.3-700-T-A4

  • Save $2.71
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

JW WINCO GN851.3-700-T-A4 LATCH TOGGLE CLAMP
GN 851.3 latch type toggle clamps are compact in design and can be used to ensure high holding capacities. The circular movement of the handle is transformed into linear action of the latch. In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.
Stainless Steel Clamp without U-bolt, with catch.851.3-160-T6-A4

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

JW WINCO GN851.3-700-T-A4 LATCH TOGGLE CLAMP

GN 851.3 latch type toggle clamps are compact in design and can be used to ensure high holding capacities. The circular movement of the handle is transformed into linear action of the latch. In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.

Clamp: Stainless Steel

Finish: Matte

U-bolt Latch: -

Hand Grip: Plastic

Clamping Type: without U-bolt, with catch

Size: 700

Holding Capacity: 7000 N

Overall Length: 8.54"

Overall Height: 2.20"

Stroke: -

Adjustable Length: -

Thread Dia.: M8

U-bolt Length: -

Horizontal Mounting Hole Dist: 1.63"

Vertical Mounting Hole Dist: 1.50"

Catch Mounting Hole Dist: 0.75"

Mounting Hole Dia.: 0.33"
