Brand: JW Winco

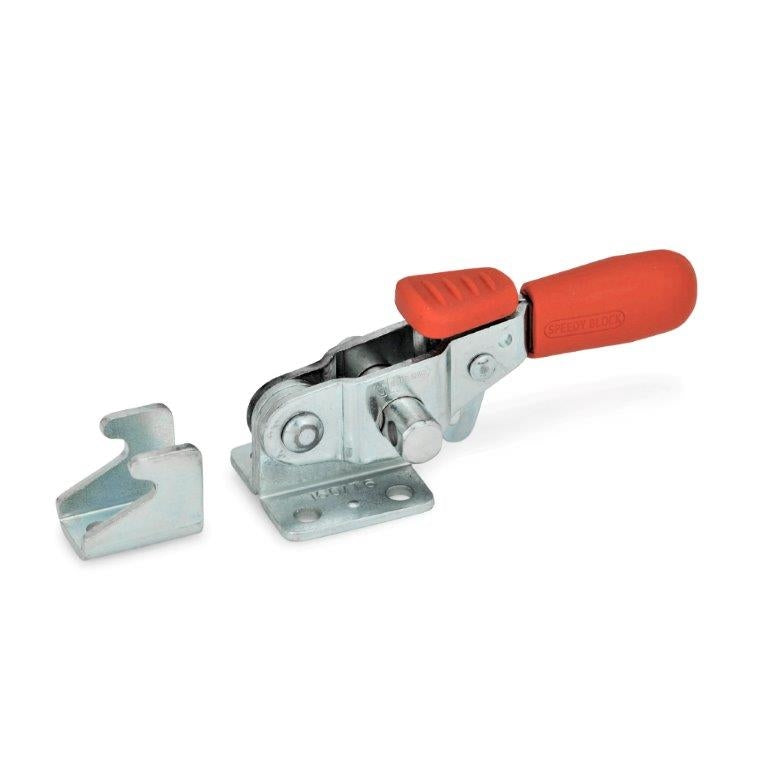

JW WINCO GN851.3-160-T LATCH TOGGLE CLAMP
SKU: JW-851.3-160-T
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN851.3-160-T LATCH TOGGLE CLAMPGN 851.3 latch type toggle clamps are compact in design and can be used to ensure high holding capacities. The circular movement of the handle is transformed into linear action of the latch. In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.
Steel Clamp without U-bolt, with catch.851.3-160-T6-A4
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN851.3-160-T LATCH TOGGLE CLAMP
GN 851.3 latch type toggle clamps are compact in design and can be used to ensure high holding capacities. The circular movement of the handle is transformed into linear action of the latch. In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.
Clamp: Steel
Finish: Zinc plated
U-bolt Latch: -
Hand Grip: Plastic
Clamping Type: without U-bolt, with catch
Size: 160
Holding Capacity: 1600 N
Overall Length: 3.90"
Overall Height: 1.22"
Stroke: -
Adjustable Length: -
Thread Dia.: M4
U-bolt Length: -
Horizontal Mounting Hole Dist: 0.63"
Vertical Mounting Hole Dist: 0.75"
Catch Mounting Hole Dist: 0.39"
Mounting Hole Dia.: 0.17"
