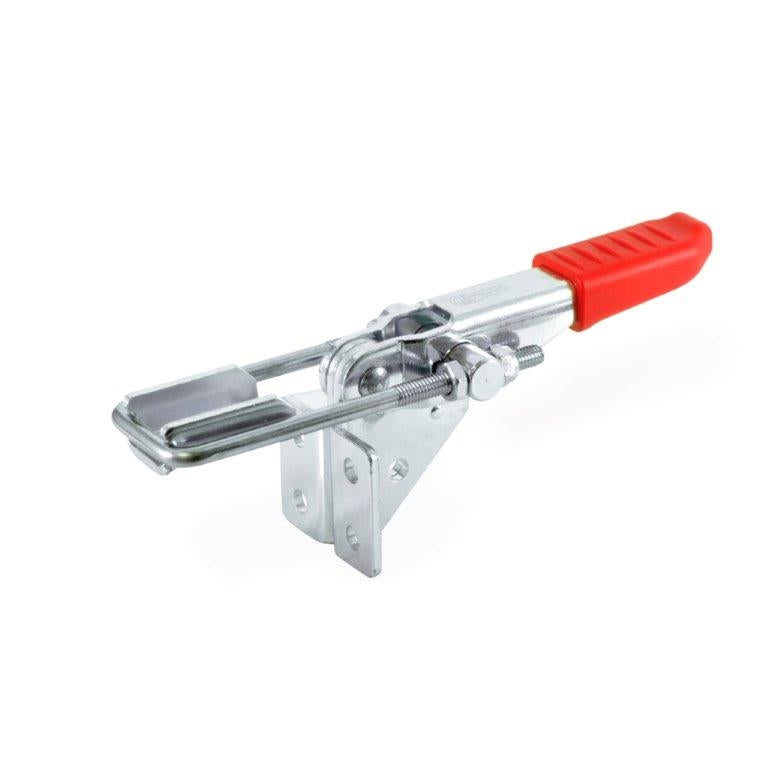

JW WINCO GN851.2-700-T4 LATCH TOGGLE CLAMP STEEL
SKU: JW-851.2-700-T4
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN851.2-700-T4 LATCH TOGGLE CLAMP STEELThe stroke of GN 851.2 latch type toggle clamps can be adjusted within its range. In the clamped position the U-bolt latch and the clamping arm are horizontal to the vertical mounting plane.
Steel Clamp with U-bolt and catch.
GN 851.2 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN851.2-700-T4 LATCH TOGGLE CLAMP STEEL
The stroke of GN 851.2 latch type toggle clamps can be adjusted within its range. In the clamped position the U-bolt latch and the clamping arm are horizontal to the vertical mounting plane.
Clamp: Steel
Finish: Zinc plated
U-bolt Latch: Steel
Hand Grip: Plastic
Clamping Type: with U-bolt and catch
Size: 700
Holding Capacity: 7500 N
Overall Length: 8.86"
Overall Height: 3.23"
Stroke: 2.52"
Adjustable Length: 1.18"
Thread Dia.: M8
U-bolt Length: 3.86"
Horizontal Mounting Hole Dist: 1.44"
Vertical Mounting Hole Dist: 1.26"
Catch Mounting Hole Dist: 1.06"
Mounting Hole Dia.: 0.33"
