Brand: JW Winco

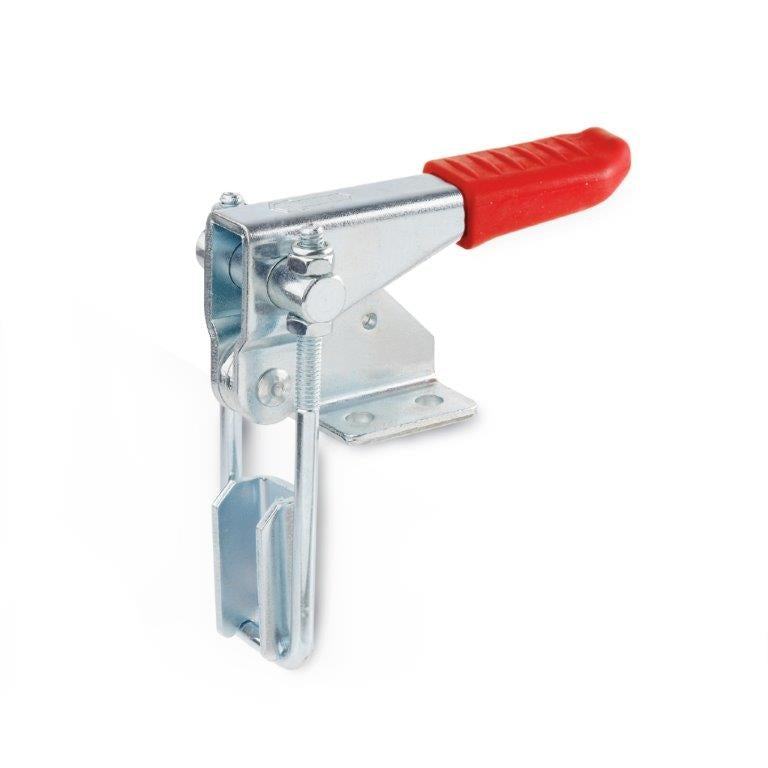

JW WINCO GN851.1-320-T3 LATCH TOGGLE CLAMP STEEL
SKU: JW-851.1-320-T3
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN851.1-320-T3 LATCH TOGGLE CLAMP STEELThe stroke of the U-bolt latch of GN 851.1 latch type toggle clamps can be adjusted within its range. In the clamped position the U-bolt latch with clamping arm is perpendicular to the clamping arm and the plane of the operating handle.
Steel Clamp with U-bolt and catch.
GN 851.1 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN851.1-320-T3 LATCH TOGGLE CLAMP STEEL
The stroke of the U-bolt latch of GN 851.1 latch type toggle clamps can be adjusted within its range. In the clamped position the U-bolt latch with clamping arm is perpendicular to the clamping arm and the plane of the operating handle.
Clamp: Steel
Finish: Zinc plated
U-bolt Latch: Steel
Hand Grip: Plastic
Clamping Type: with U-bolt and catch
Size: 320
Holding Capacity: 3200 N
Overall Length: 4.17"
Overall Height: 2.13"
Stroke: 2.09"
Adjustable Range: 0.83"
Thread Dia.: M6
U-bolt Length: 3.07"
Horizontal Mounting Hole Dist: 0.75"
Vertical Mounting Hole Dist: 1.00"
Catch Mounting Hole Dist: 0.81"
Mounting Hole Dia.: 0.26"
