Brand: JW Winco

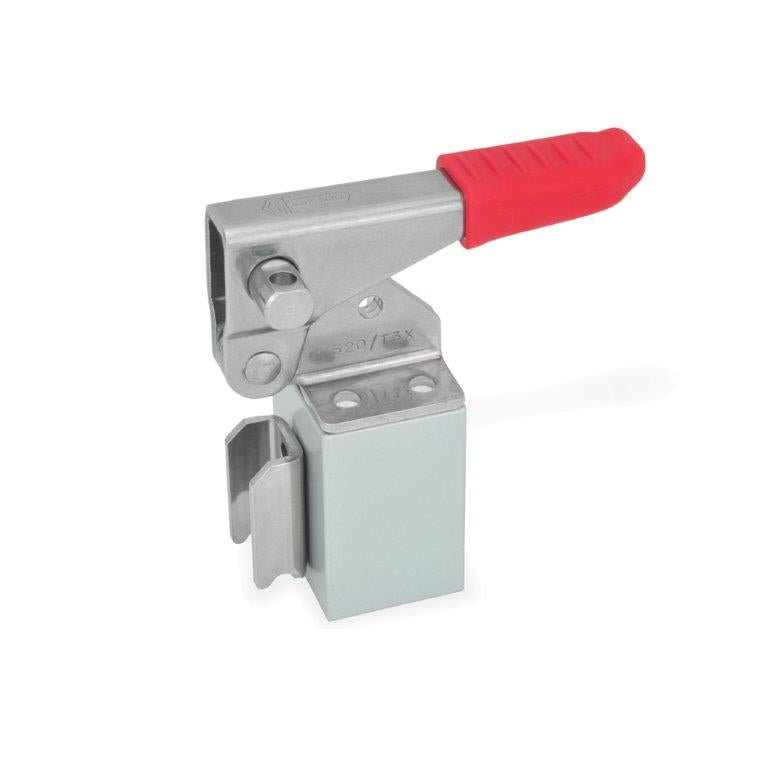

JW WINCO GN851.1-160-T-NI LATCH TOGGLE CLAMP
SKU: JW-851.1-160-T-NI
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN851.1-160-T-NI LATCH TOGGLE CLAMPThe stroke of the U-bolt latch of GN 851.1 latch type toggle clamps can be adjusted within its range. In the clamped position the U-bolt latch with clamping arm is perpendicular to the clamping arm and the plane of the operating handle.
Stainless Steel Clamp without U-bolt, with catch.
GN 851.1 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN851.1-160-T-NI LATCH TOGGLE CLAMP
The stroke of the U-bolt latch of GN 851.1 latch type toggle clamps can be adjusted within its range. In the clamped position the U-bolt latch with clamping arm is perpendicular to the clamping arm and the plane of the operating handle.
Clamp: Stainless Steel
Finish: Matte
U-bolt Latch: -
Hand Grip: Plastic
Clamping Type: without U-bolt, with catch
Size: 160
Holding Capacity: 1600 N
Overall Length: 2.68"
Overall Height: 1.46"
Stroke: 1.36"
Adjustable Range: 0.47"
Thread Dia.: M4
U-bolt Length: -
Horizontal Mounting Hole Dist: 0.51"
Vertical Mounting Hole Dist: 0.87"
Catch Mounting Hole Dist: 0.56"
Mounting Hole Dia.: 0.17"
