Brand: DESTACO

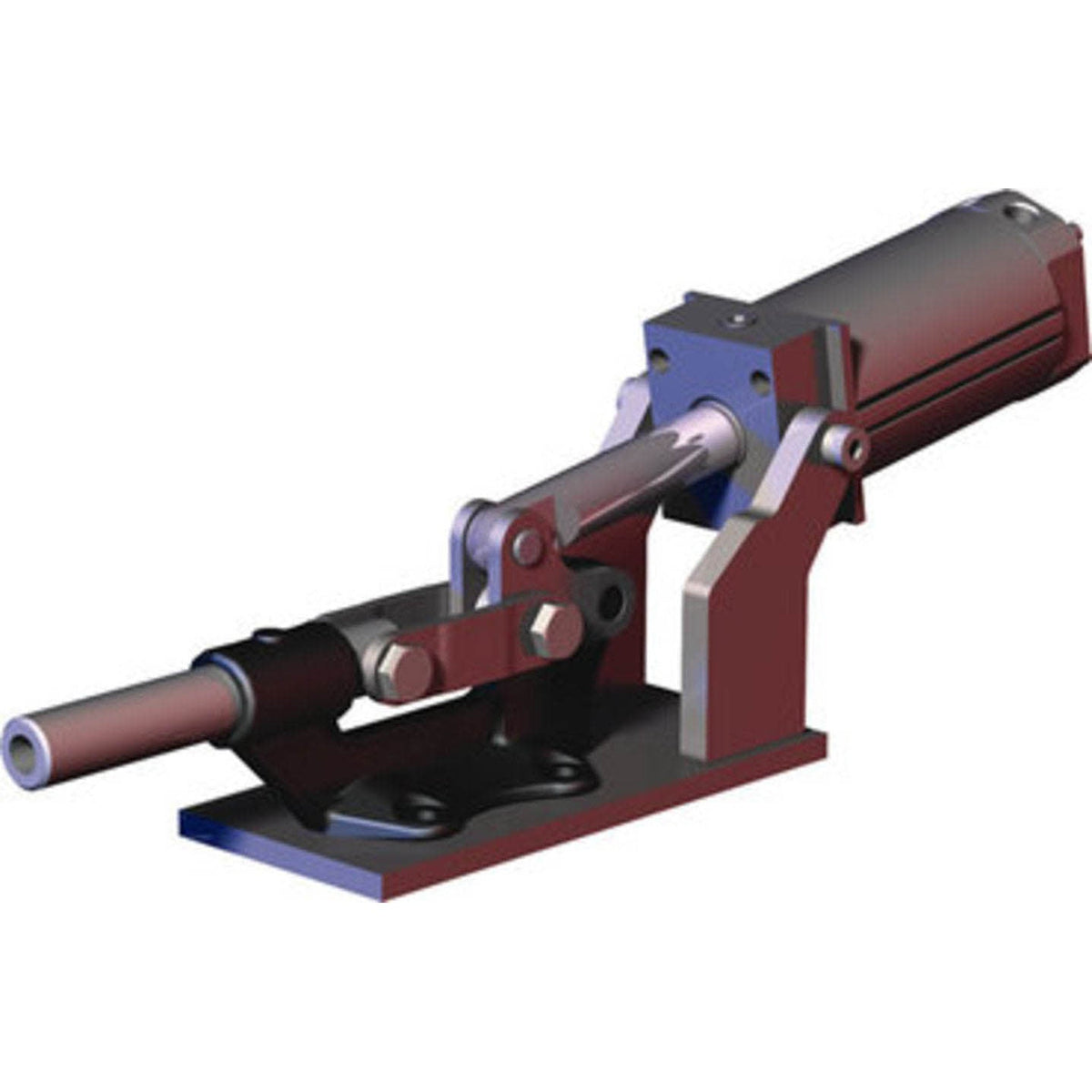

DESTACO 850 STRAIGHT-LINE ACTION CLAMP
SKU: DE-STA-CO-850
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the impressive DESTACO 850 STRAIGHT-LINE ACTION CLAMP. This pneumatic version of Destaco's Model 650 manual straight line action clamp is equipped with a built-in flow restriction, eliminating the need for external flow controls. It's also sensor ready for round or T-slot style sensors, making it incredibly versatile. Plus, it has a maximum holding capacity of 16,000 lbs. With a plunger travel of 2.00 inches, cylinder bore of 63mm, and plunger height of 2.63 inches, this clamp is both powerful and precise. Don't miss out on this must-have tool for your workshop.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 850 STRAIGHT-LINE ACTION CLAMP
- Pneumatic version of Model 650 manual straight line action clamp
- Sensor ready for round or T-slot style sensors
- Built-in flow restriction eliminates need for external flow controls
- Replacement Clamp Assembly: 850-LC
| Weight (lb) | 16.67 |
| Plunger Travel (in) | 2.00 |
| Cylinder Bore (mm) | 63 |
| Plunger Height (in) | 2.63 |
| Port Size | 1/8 NPT |
| Maxmum Holding Capacity (lb) | 16,000 |
| Plunger Thread | 5/8-11 |
| Application - Welding | Excellent/High |
| Application - Assembly | Excellent/High |
| Duty Cycle | Excellent/High |
| Operating Temperature | -10° to 90°C (-14° to 194° F) |
| Product Type | Pneumatic Straight Line Plunger Clamp |
| Exerting Force (N) | 5522 |
| Exerting Force (lbf) | 1232 |
| Air Consumption (dm³) | 3.08 |
| Air Consumption (ft³) | 0.109 |
| Replacement Seal Kit | 850450-63-1-00 |
