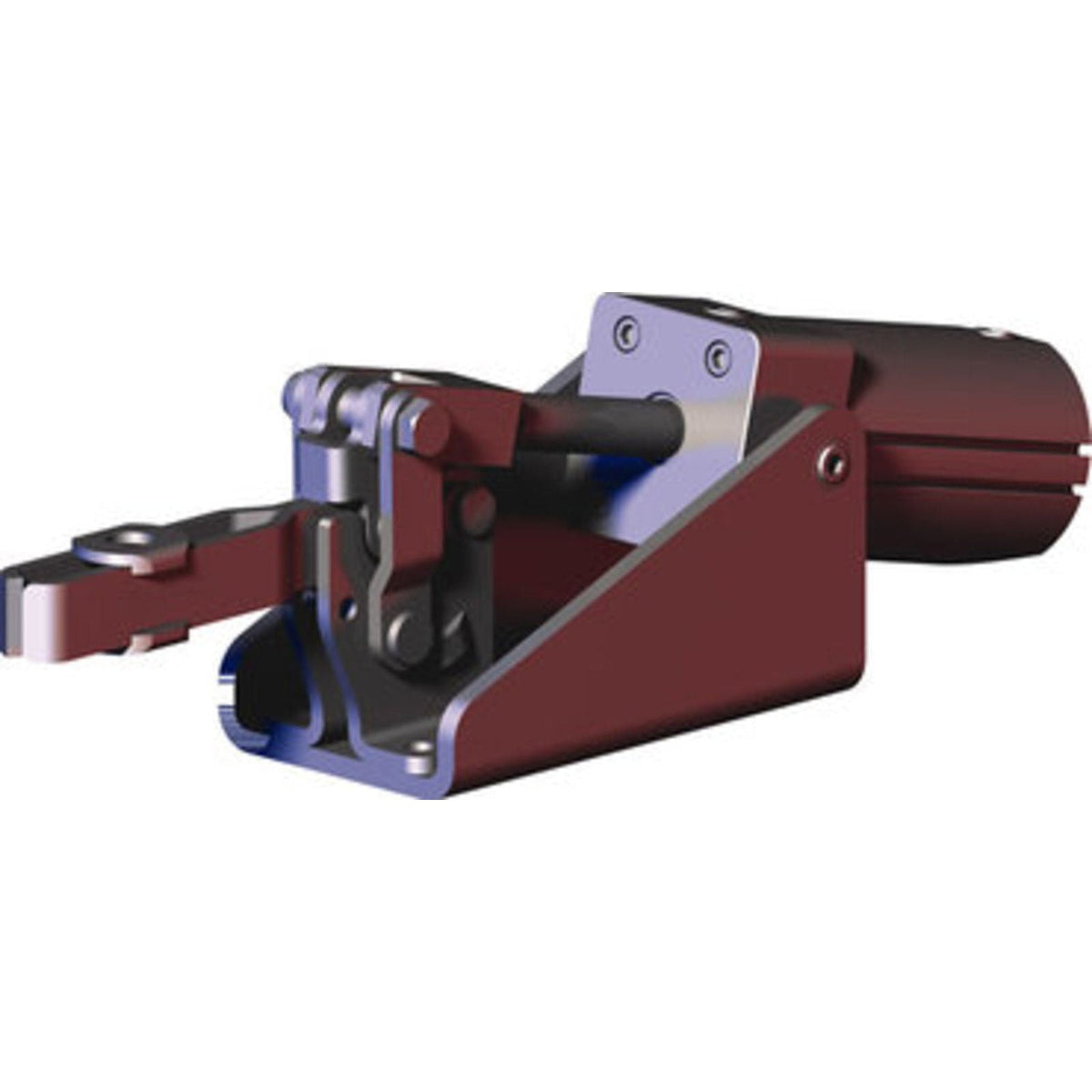

DESTACO 847-U HOLD-DOWN ACTION CLAMP

Brand: DESTACO

DESTACO 847-U HOLD-DOWN ACTION CLAMP

SKU: DE-STA-CO-847-U
MPN: 847-U

  • $482.72
    Unit price per
  • Save $60.63
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 847-U HOLD-DOWN ACTION CLAMP is the pneumatic version of Destaco's popular manual clamp models, 247-U and 247-S. It features a built-in flow control for smooth and efficient operation, as well as a magnetic ring piston for precise position sensing. This versatile clamp can accommodate both T-slot (8EA-109-1) and round (810169) sensors, making it a convenient choice for any workspace. The Series 247 manual clamp also comes equipped with a switch ready for 4 mm or 6.5 x 5 mm sensors, and a built-in flow restriction that eliminates the need for external controls. It even includes Flanged Washers and has a maximum holding capacity of 1,000 lbsf. With a clamp arm length of 4.870 inches, a height under the clamp arm of 2.250 inches, and a cylinder bore of 1.97 inches, it is perfect for any u-bar style clamp arm application.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 847-U HOLD-DOWN ACTION CLAMP

Pneumatic version of our manual clamp models 247-U and 247-S. The pneumatic cylinder features built-in flow control for smooth operation and a magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.

  • Pneumatic version of Series 247 manual clamp
  • Switch ready for 4 mm or 6.5 x 5 mm sensors
  • Built-in flow restriction eliminates the need for external flow controls
  • Supplied with Flanged Washers 247109
Maximum Holding Capacity (lbsf) 1,000
Clamp Arm Length (in) 4.870
Height Under Clamp Arm (in) 2.250
Cylinder Bore (in) 1.97
Clamp Arm Style u-bar
Spindle Included? No
Application - Welding Excellent/High
Application - Assembly Excellent/High
Product Type Pneumatic Toggle Clamp
AirPort size 1/4 NPT
Exerting Force (lbf) 948
Air Consumption (ft³) 0.044
Weight (lb) 8.93
Product Series Description Toggle Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group standard pneumatic clamps
