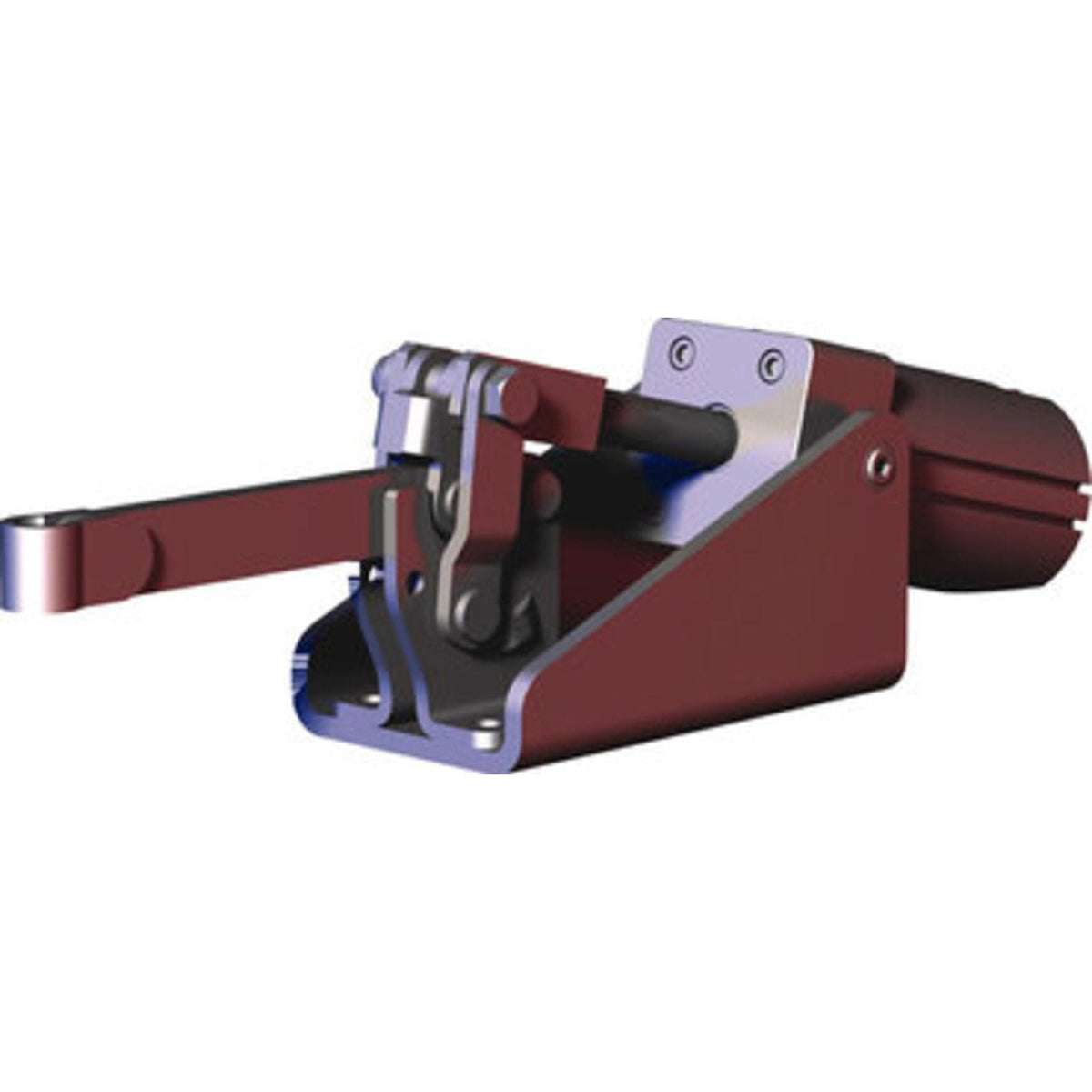

DESTACO 847-S HOLD-DOWN ACTION CLAMP

Brand: DESTACO

DESTACO 847-S HOLD-DOWN ACTION CLAMP

SKU: DE-STA-CO-847-S
MPN: 847-S

  • $482.72
    Unit price per
  • Save $60.63
Shipping calculated at checkout.

Only -4 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 847-S HOLD-DOWN ACTION CLAMP provides a pneumatic alternative to Destaco's manual clamp models 247-U and 247-S. With built-in flow control and a magnetic ring piston for position sensing, this clamp offers a smooth and precise operation. It can accommodate both T-slot (8EA-109-1) and round (810169) sensors, making it versatile and convenient. This pneumatic version of the Series 247 manual clamp is switch-ready for 4 mm or 6.5 x 5 mm sensors and comes with a bolt retainer (247110). With a maximum holding capacity of 1,000 lbs. and a clamp arm length of 4.870 inches, this clamp is both powerful and compact. The solid clamp arm style adds to its durability and reliability. Invest in the DESTACO 847-S HOLD-DOWN ACTION PNEUMATIC TOGGLE CLAMP and experience its exceptional performance for yourself!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 847-S HOLD-DOWN ACTION CLAMP

Pneumatic version of our manual clamp models 247-U and 247-S. The pneumatic cylinder features built-in flow control for smooth operation and a magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.

  • Pneumatic version of Series 247 manual clamp
  • Switch ready for 4 mm or 6.5 x 5 mm sensors
  • Built-in flow restriction eliminates the need for external flow controls
  • Supplied with Bolt Retainer 247110
Maximum Holding Capacity (lbsf) 1,000
Clamp Arm Length (in) 4.870
Height Under Clamp Arm (in) 2.250
Cylinder Bore (in) 1.97
Clamp Arm Style solid
Spindle Included? No
Application - Welding Excellent/High
Application - Assembly Excellent/High
Product Type Pneumatic Toggle Clamp
AirPort size 1/4 NPT
Exerting Force (lbf) 948
Air Consumption (ft³) 0.044
Weight (lb) 8.93
Product Series Description Toggle Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group standard pneumatic clamps
