Brand: JW Winco

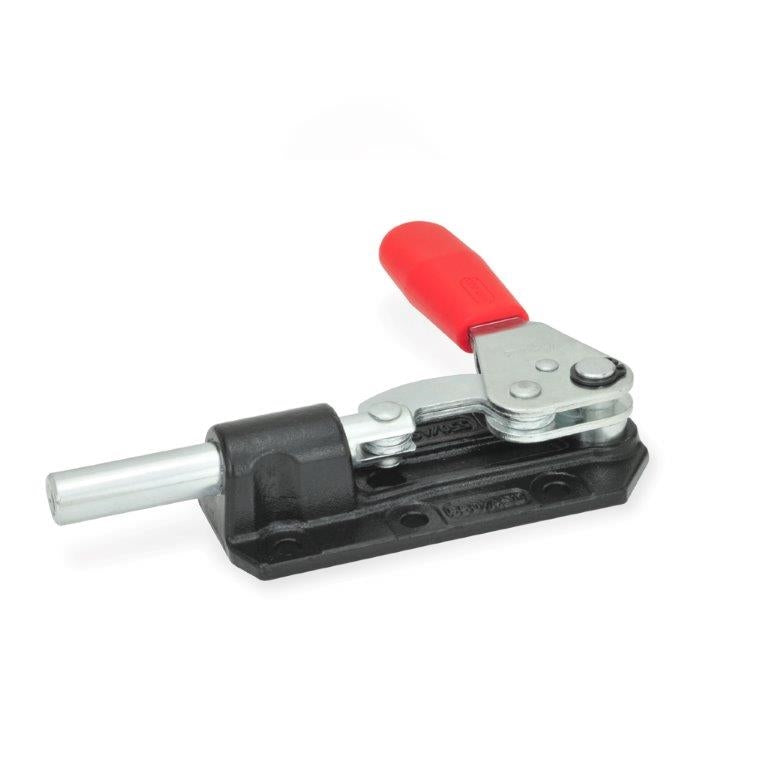

JW WINCO GN844-70-ASD PUSH-PULL TOGGLE CLAMP
SKU: JW-844-70-ASD
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN844-70-ASD PUSH-PULL TOGGLE CLAMPGN 844 push-pull type toggle clamps are known for their low height in all clamping positions. They can be used to achieve very high holding forces thanks to their massive and sturdy body.In these devices the circular movement of the handle is transformed into a straight-line action of the clamp along its axis.
Steel Clamp and Arm, Brass Body with Steel Plunger.
GN 844 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN844-70-ASD PUSH-PULL TOGGLE CLAMP
GN 844 push-pull type toggle clamps are known for their low height in all clamping positions. They can be used to achieve very high holding forces thanks to their massive and sturdy body.In these devices the circular movement of the handle is transformed into a straight-line action of the clamp along its axis.
Clamp and Arm: Steel
Finish: Zinc plated
Body: Brass
Finish: Nickle plated
Plunger: Steel
Hand Grip: Plastic
Clamping Type: Counter-clockwise
Size: 70
Holding Capacity: 900 N
Overall Length: 3.39"
Overall Height: 1.93"
Stroke: 0.79"
Plunger Dia.: 0.33"
Thread Dia.: M6
Horizontal Mounting Hole Dist 1: 1.02"
Horizontal Mounting Hole Dist 2: -
Vertical Mounting Hole Dist 1: 1.02"
Mounting Hole Dia.: 0.17"
