Brand: JW Winco

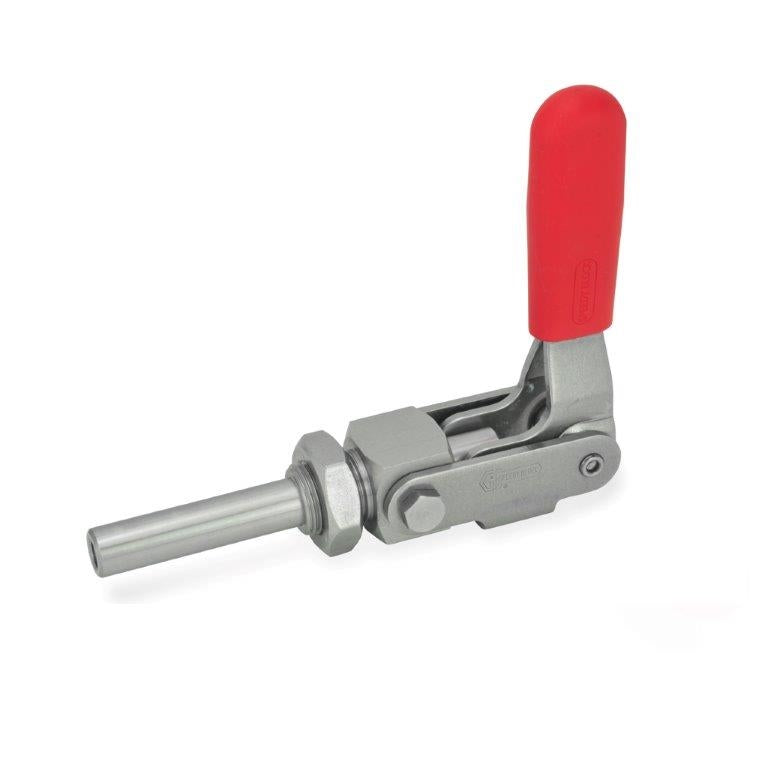

JW WINCO GN843.1-165-AS-NI PUSH-PULL TOGGLE CLAMP
SKU: JW-843.1-165-AS-NI
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN843.1-165-AS-NI PUSH-PULL TOGGLE CLAMPGN 843.1 push-pull type toggle clamps can be mounted on a mounting bracket (Type ASW) or directly on the jig via the threaded body with hex nut.The center bushing securing method allows the operating handle to be turned to the most favorable position.
Stainless Steel Clamp and Arm, Stainless Steel Plunger without mounting bracket.
GN 843.1 Standard Sheet
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN843.1-165-AS-NI PUSH-PULL TOGGLE CLAMP
GN 843.1 push-pull type toggle clamps can be mounted on a mounting bracket (Type ASW) or directly on the jig via the threaded body with hex nut.The center bushing securing method allows the operating handle to be turned to the most favorable position.
Clamp and Arm: Stainless Steel
Finish: Matte
Plunger: Stainless Steel
Hand Grip: Plastic
Type: without mounting bracket
Size: 165
Holding Capacity: 5400 N
Overall Length: 4.45"
Overall Height: 4.33"
Stroke: 1.50"
Plunger Dia.: 0.47"
Thread Dia.: M8
External Thread Dia.: M20x1.5
Horizontal Mounting Hole Dist: -
Vertical Mounting Hole Dist: -
Mounting Hole Dia.: -
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
