Brand: JW Winco

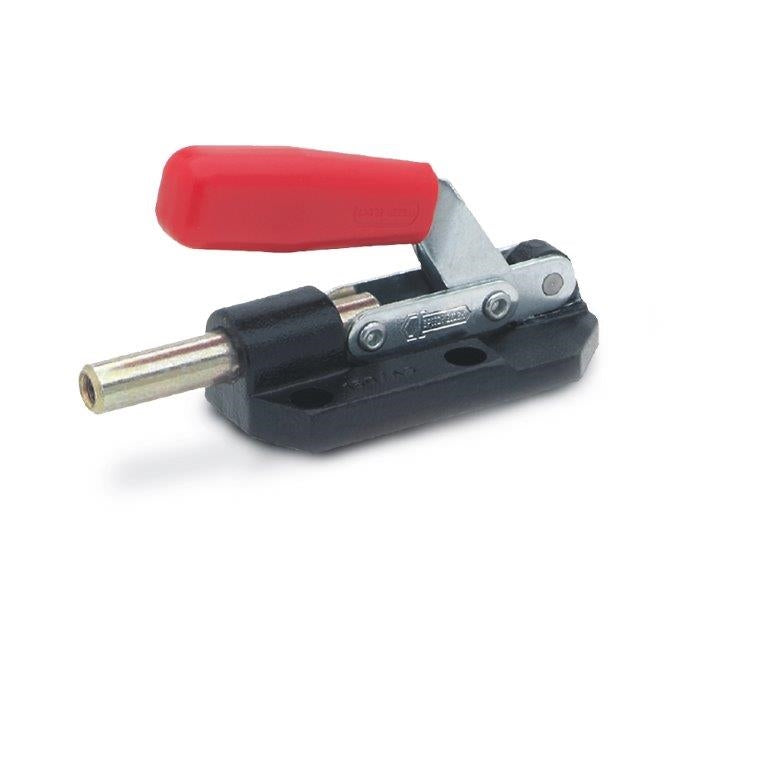

JW WINCO GN842-70-AS PUSH-PULL TOGGLE CLAMP
SKU: JW-842-70-AS
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN842-70-AS PUSH-PULL TOGGLE CLAMPIn these devices the circular movement of the handle is transformed into a straight-line action of the clamp along its axis.
Steel Clamp and Arm with Zinc plated Finish
GN 842 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN842-70-AS PUSH-PULL TOGGLE CLAMP
In these devices the circular movement of the handle is transformed into a straight-line action of the clamp along its axis.
Clamp and Arm: Steel
Finish: Zinc plated
Body: Brass
Finish: Nickle plated
Plunger: Steel
Hand Grip: Plastic
Size: 70
Holding Capacity: 1200 N
Overall Length: 3.39"
Overall Height: 1.67"
Stroke: 0.79"
Plunger Dia.: 0.33"
Thread Dia.: M6
Horizontal Mounting Hole Dist 1: 1.02"
Horizontal Mounting Hole Dist 2: -
Vertical Mounting Hole Dist 1: 1.02"
Mounting Hole Dia.: 0.17"
