Brand: JW Winco

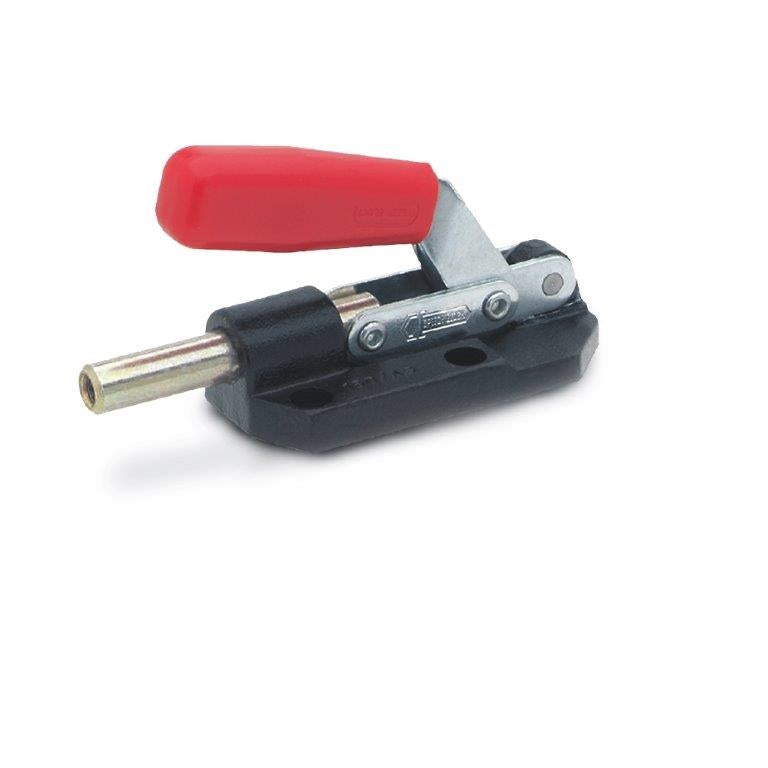

JW WINCO GN842-550-AS PUSH-PULL TOGGLE CLAMP
SKU: JW-842-550-AS
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN842-550-AS PUSH-PULL TOGGLE CLAMPIn these devices the circular movement of the handle is transformed into a straight-line action of the clamp along its axis.
Steel Clamp and Arm with Zinc plated Finish
GN 842 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN842-550-AS PUSH-PULL TOGGLE CLAMP
In these devices the circular movement of the handle is transformed into a straight-line action of the clamp along its axis.
Clamp and Arm: Steel
Finish: Zinc plated
Body: Steel
Finish: Black lacquered
Plunger: Steel
Hand Grip: Plastic
Size: 550
Holding Capacity: 8000 N
Overall Length: 6.48"
Overall Height: 3.25"
Stroke: 1.65"
Plunger Dia.: 0.55"
Thread Dia.: M8
Horizontal Mounting Hole Dist 1: 1.38"
Horizontal Mounting Hole Dist 2: 1.61"
Vertical Mounting Hole Dist 1: 1.61"
Mounting Hole Dia.: 0.28"
