Brand: JW Winco

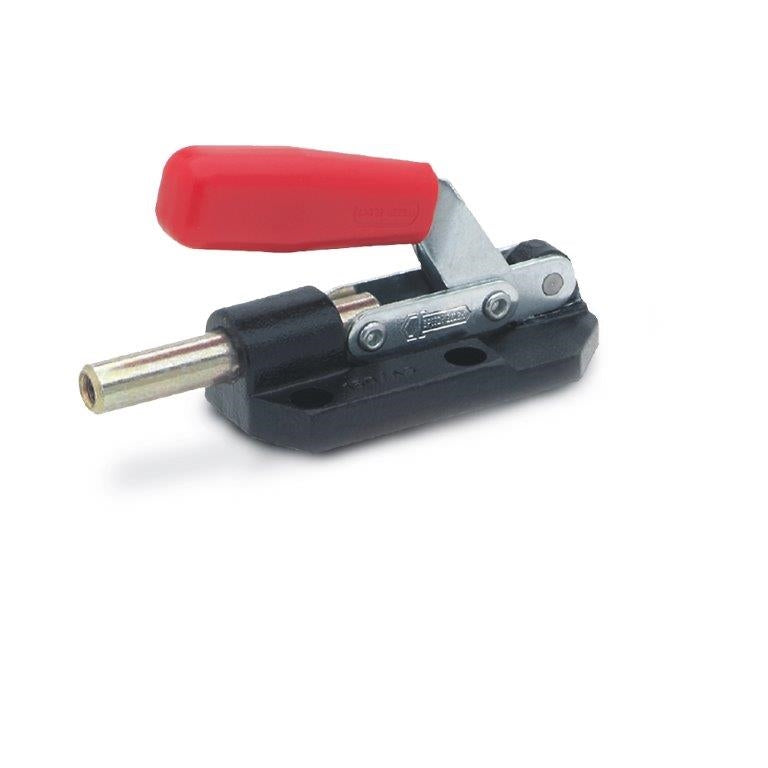

JW WINCO GN842-3100-AS PUSH-PULL TOGGLE CLAMP
SKU: JW-842-3100-AS
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN842-3100-AS PUSH-PULL TOGGLE CLAMPIn these devices the circular movement of the handle is transformed into a straight-line action of the clamp along its axis.
Steel Clamp and Arm with Zinc plated Finish
GN 842 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN842-3100-AS PUSH-PULL TOGGLE CLAMP
In these devices the circular movement of the handle is transformed into a straight-line action of the clamp along its axis.
Clamp and Arm: Steel
Finish: Zinc plated
Body: Steel
Finish: Black lacquered
Plunger: Steel
Hand Grip: Plastic
Size: 3100
Holding Capacity: 45000 N
Overall Length: 12.44"
Overall Height: 5.39"
Stroke: 3.94"
Plunger Dia.: 0.87"
Thread Dia.: M14
Horizontal Mounting Hole Dist 1: 2.76"
Horizontal Mounting Hole Dist 2: 2.76"
Vertical Mounting Hole Dist 1: 2.13"
Mounting Hole Dia.: 0.43"
