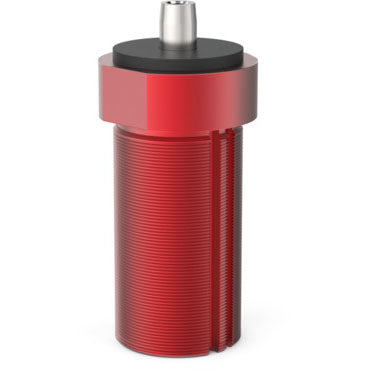

DESTACO 8415-LA - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Brand: DESTACO

DESTACO 8415-LA - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

SKU: DE-STA-CO-8415-LA
MPN: 8415-LA

  • $431.72
    Unit price per
Shipping calculated at checkout.

Only 0 left!
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

MODEL: 8415-LA
These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The imperial threaded bodies can be mounted in a tapped hole or athrough hole for recessed mounting. Tapered piston rod allows the clamping arm
Sensor ready for round style sensors
Clamping Arm not includedRight Hand Swing

*In-stock Destaco products will be shipped within 3 business days. Otherwise average lead times are 2-4 weeks*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 8415-LA - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The imperial threaded bodies can be mounted in a tapped hole or athrough hole for recessed mounting. Tapered piston rod allows the clamping arm

  • Sensor ready for round style sensors
  • Clamping Arm not included
  • Right Hand Swing
Stroke (mm) 31.8
Stroke (in) 1.250
Cylinder Bore (mm) 30.2
Cylinder Bore (in) 1.19
Clamping Force @ 5Bar[72Psi] (N) 245
Clamping Force @ 5Bar[72Psi] (lbf.) 55
Mount Threaded Body
Replacement Seal Kit 841560
Swing Direction RH
Air Port size 3/8-16
Air Consumption (per double stroke at 5 bar) (dm³) 0.250
Air Consumption (per double stroke at 7 psi) (in³) 0.009
Stroke during rotation (mm) 19.1
Stroke during rotation (in) 0.75
Vertical clamp stroke (mm) 12.7
Vertical clamp stroke (in) 0.50
Sensor Ready Yes
Weight (kg) 0.68
Weight (lb) 1.50
Product Series Description Swing Clamp
