Brand: JW Winco

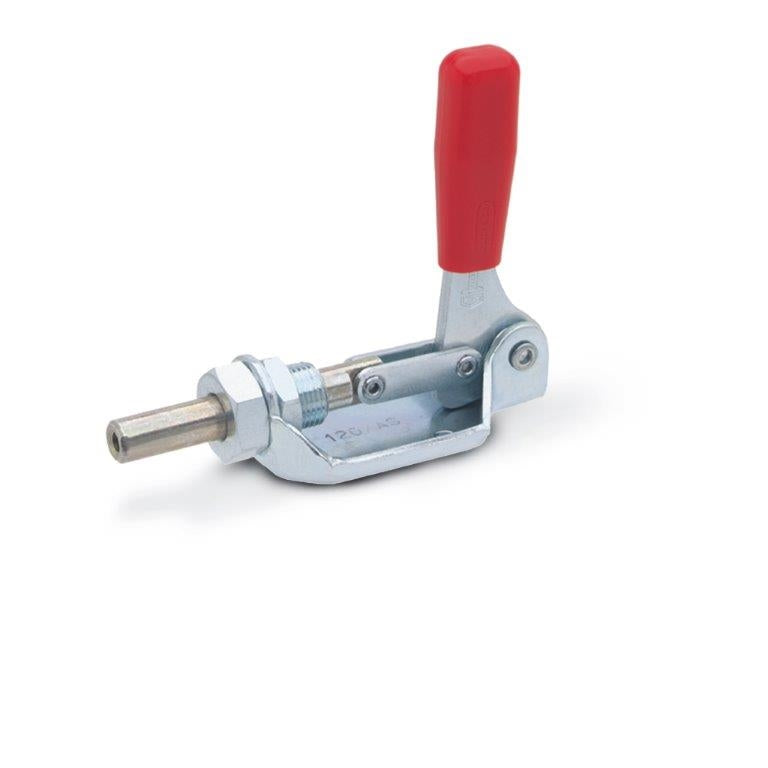

JW WINCO GN841-300-AS PUSH-PULL TOGGLE CLAMP
SKU: JW-841-300-AS
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN841-300-AS PUSH-PULL TOGGLE CLAMPIn these devices the circular movement of the handle is transformed into a straight-line action of the clamp along its axis.
Steel Clamp and Arm with Zinc plated Finish
GN 841 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN841-300-AS PUSH-PULL TOGGLE CLAMP
In these devices the circular movement of the handle is transformed into a straight-line action of the clamp along its axis.
Clamp and Arm: Steel
Finish: Zinc plated
Plunger: Steel
Hand Grip: Plastic
Size: 300
Holding Capacity: 7200 N
Overall Length: 6.57
Overall Height: 5.51
Stroke: 1.3
Plunger Dia.: 0.55
Thread Dia.: M8
Bushing Dia.: 1.06
Horizontal Mount Hole Dist: 1.97
Vertical Mounting Hole Dist: 1.34
Mounting Hole Dia.: 0.26
