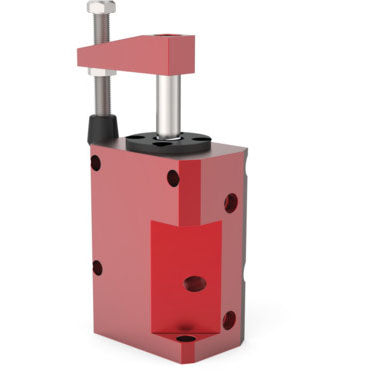

DESTACO 8316 - BLOCK STYLE PNEUMATIC SWING CLAMPS

Brand: DESTACO

DESTACO 8316 - BLOCK STYLE PNEUMATIC SWING CLAMPS

SKU: DE-STA-CO-8316
MPN: 8316

  • $452.30
    Unit price per
Shipping calculated at checkout.

Only 0 left!
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

MODEL: 8316
These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The block style bodies can be mounted from the top or side for maximum flexibility. All models feature a magnetic ring piston for position sens
Sensor ready
Clamping arm and spindle included. Available with out clamping arm, specify –LA
Left hand swing

*In-stock Destaco products will be shipped within 3 business days. Otherwise average lead times are 2-4 weeks*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 8316 - BLOCK STYLE PNEUMATIC SWING CLAMPS

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The block-style bodies can be mounted from the top or side for maximum flexibility. All models feature a magnetic ring piston for position sens

  • Sensor ready
  • Clamping arm and spindle included. Available without clamping arm, specify €“LA
  • Left-hand swing
Stroke (mm) 31.8
Stroke (in) 1.250
Cylinder Bore (mm) 38.1
Cylinder Bore (in) 1.5
Clamping Force @ 5Bar[72Psi] (N) 300
Clamping Force @ 5Bar[72Psi] (lbf.) 67
Mount Block style - side or top mount
Replacement Seal Kit 821560
Swing Direction LH
Air Port size 3/8-16
Air Consumption (per double stroke at 5 bar) (dm³) 0.400
Air Consumption (per double stroke at 7 psi) (in³) 0.014
Stroke during rotation (mm) 19.1
Stroke during rotation (in) 0.75
Vertical clamp stroke (mm) 12.7
Vertical clamp stroke (in) 0.50
Sensor Ready Yes
Weight (kg) 0.91
Weight (lb) 2.00
Product Series Description Swing Clamp
