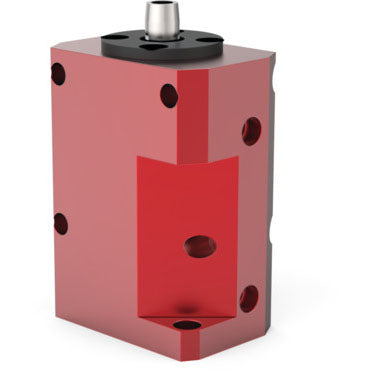

DESTACO 8315-LA - BLOCK STYLE PNEUMATIC SWING CLAMPS

Brand: DESTACO

DESTACO 8315-LA - BLOCK STYLE PNEUMATIC SWING CLAMPS

SKU: DE-STA-CO-8315-LA
MPN: 8315-LA

  • $432.60
    Unit price per
  • Save $33.45
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Experience the unmatched versatility and reliability of DESTACO 8315-LA, the perfect solution for a range of applications, from welding to assembly. With its block-style design, this clamp can be easily mounted from the top or side, providing you with ultimate flexibility. Featuring a magnetic ring piston for precise positioning and sensor readiness, this right-hand swing clamp offers a stroke of 31.8mm (1.250in) and a cylinder bore of 38.1mm (1.5in). Its impressive clamping force of 300N (67lbf) at 5 bar (72 psi) makes it a top choice for any project. Choose a side or top mount and see the difference for yourself!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 8315-LA - BLOCK STYLE PNEUMATIC SWING CLAMPS

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The block-style bodies can be mounted from the top or side for maximum flexibility. All models feature a magnetic ring piston for position sens

  • Sensor ready
  • Clamping arm not included
  • Right-hand swing
Stroke (mm) 31.8
Stroke (in) 1.250
Cylinder Bore (mm) 38.1
Cylinder Bore (in) 1.5
Clamping Force @ 5Bar[72Psi] (N) 300
Clamping Force @ 5Bar[72Psi] (lbf.) 67
Mount Block style - side or top mount
Replacement Seal Kit 821560
Swing Direction RH
Air Port size 3/8-16
Air Consumption (per double stroke at 5 bar) (dm³) 0.400
Air Consumption (per double stroke at 7 psi) (in³) 0.014
Stroke during rotation (mm) 19.1
Stroke during rotation (in) 0.75
Vertical clamp stroke (mm) 12.7
Vertical clamp stroke (in) 0.50
Sensor Ready Yes
Weight (kg) 0.91
Weight (lb) 2.00
Product Series Description Swing Clamp
