Brand: DESTACO

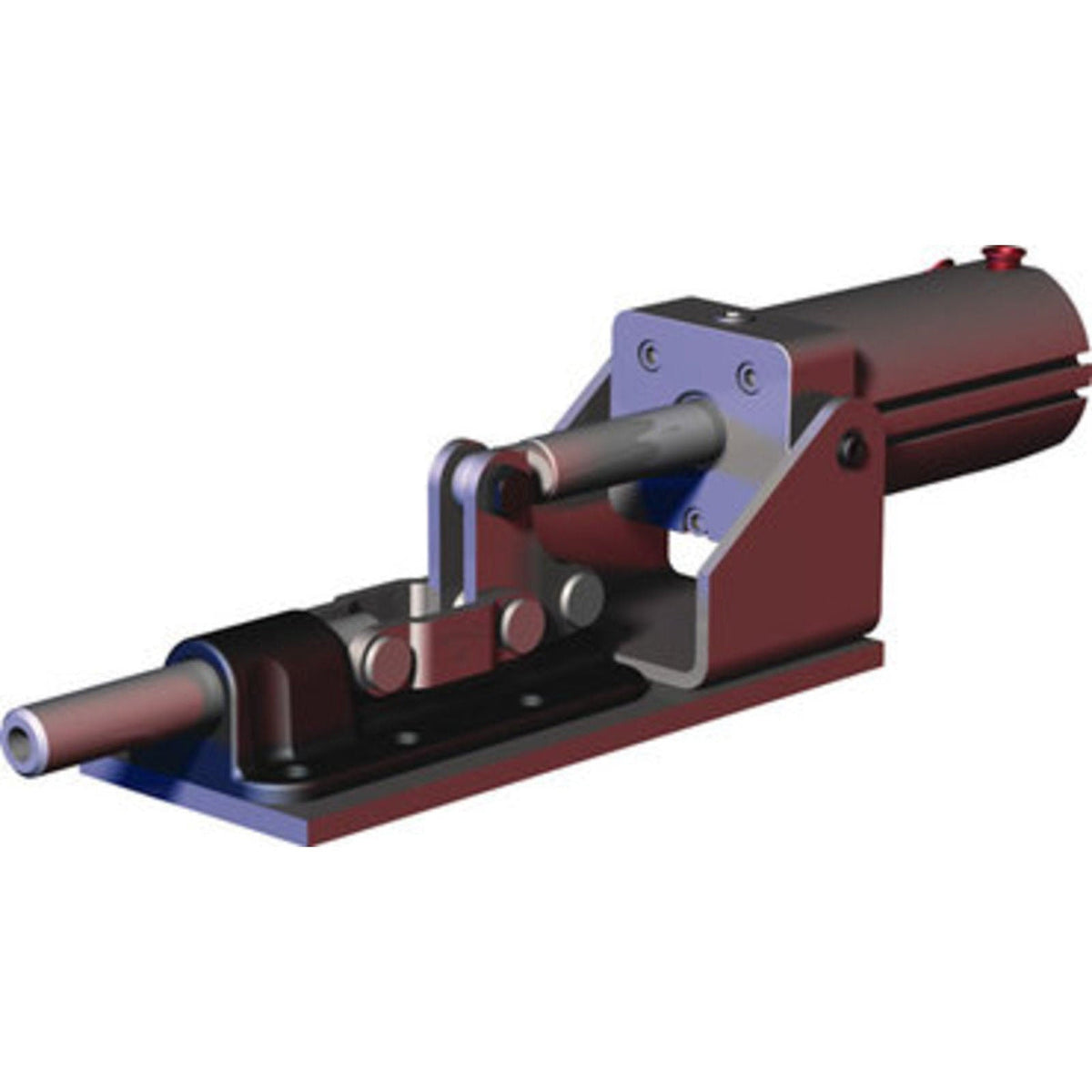

DESTACO 830-ME PNEUMATIC STRAIGHT LINE ACTION CLAMP
SKU: DE-STA-CO-830-ME
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 830-ME PNEUMATIC STRAIGHT LINE ACTION PNEUMATIC TOGGLE CLAMP is the perfect combination of power and precision. It is a pneumatic version of the popular Destaco manual toggle clamp model 630, equipped with a built-in flow control for smooth operation and a magnetic ring piston for precise position sensing. This versatile clamp can accommodate both T-slot (8EA-109-1) and round (810169) style sensors, making it a convenient option for any sensor type. You can trust in its reliability and efficiency, as it eliminates the need for external flow controls with its built-in flow restriction. With a plunger travel of 1.25 inches, cylinder bore of 1.57 inches, plunger height of 1.060 inches, and maximum holding capacity of 2,500 lbs, this product is sure to satisfy your needs.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 830-ME PNEUMATIC STRAIGHT LINE ACTION CLAMP
Product Details
Pneumatic version of our manual clamp model 630. The pneumatic cylinder features built-in flow control for smooth operation and a magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
- Pneumatic version of Model 630 manual straight line action clamp
- Sensor ready for round or T-slot style sensors
- Built-in flow restriction eliminates need for external flow controls
- Replacement Clamp Assembly: 830-M-LC
Plunger Travel (in) | 1.25 |
Cylinder Bore (in) | 1.57 |
Plunger Height (in) | 1.060 |
Maxmum Holding Capacity (lb) | 2,500 |
Plunger Thread | M10 |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Duty Cycle | Fair/Medium |
Operating Temperature | -10° to 90°C (-14° to 194° F) |
Product Type | Pneumatic Straight Line Plunger Clamp |
Air Port size | G-1/8 |
Exerting Force (lbf) | 800 |
Air Consumption (ft³) | 0.029 |
Replacement Seal Kit | 810450-40-1-00 |
Weight (lb) | 6.17 |
Product Series Description | Toggle Clamp |
Product Function | Clamping |
Product Family | Light-Duty Pneumatic Clamping |
Product Group | standard pneumatic clamps |
