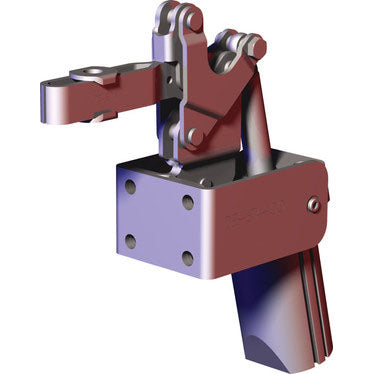

DESTACO 827-UE HOLD-DOWN ACTION CLAMP WITH G-PORTS
SKU: DE-STA-CO-827-UE
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO 827-UE HOLD-DOWN ACTION PNEUMATIC TOGGLE CLAMP WITH G-PORTS - the perfect clamp for maximum flexibility and smooth operation. This pneumatic version of the popular Destaco 817-U and 817-S models features dual mounting surfaces and a built-in flow control for an effortless experience. Plus, the magnetic ring piston ensures precise position sensing. With the ability to accommodate both round and T-slot style sensors, this clamp offers ultimate versatility. And with a maximum holding capacity of 600 lbsf, a cylinder bore of 1.57 inches, a 3.270 inch clamp arm length, and a u-bar style arm, it's the perfect clamp for any project. Don't miss out on the top-of-the-line DESTACO 827-UE HOLD-DOWN ACTION PNEUMATIC TOGGLE CLAMP WITH G-PORTS!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 827-UE HOLD-DOWN ACTION CLAMP WITH G-PORTS
Product Details
The pneumatic version of clamp models 817-U and 817-S features dual mounting surfaces for maximum flexibility. Built-in flow control for smooth operation, magnetic ring piston for position sensing. Accommodates T-slot (8EA-109-1) or round (810169) sensors.
- Dual mounting surfaces for maximum flexibility
- Sensor ready for round or T-slot style sensors
- Built-in flow restriction eliminates the need for external flow controls
- Replacement Clamp Assembly: 827-U-LC
| Maximum Holding Capacity (lbsf) | 600 |
| Clamp Arm Length (in) | 3.270 |
| Height Under Clamp Arm (in) | 3.890 |
| Cylinder Bore (in) | 1.57 |
| Clamp Arm Style | u-bar |
| Application - Welding | Fair/Medium |
| Application - Assembly | Excellent/High |
| Duty Cycle | Fair/Medium |
| Operating Temperature | -10° to 90°C (-14° to 194° F) |
| Product Type | Pneumatic Toggle Clamp |
| Air Port size | G-1/8 |
| Exerting Force (lbf) | 49 |
| Air Consumption (ft³) | 0.029 |
| Replacement Seal Kit | 810450-40-1-0 |
| Weight (lb) | 4.71 |
| Product Series Description | Toggle Clamp |
| Product Function | Clamping |
| Product Family | Light-Duty Pneumatic Clamping |
| Product Group | Standard pneumatic clamps |
