Brand: JW Winco

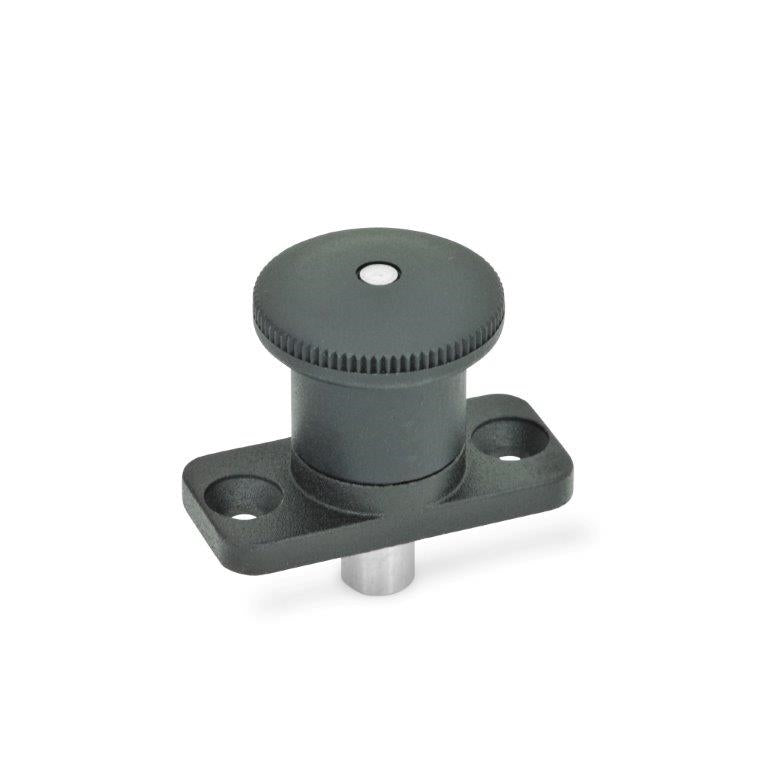

JW WINCO GN822.8-4-5-B MINI INDEXING PLUNGER - 822.8-4-5-B

SKU: JW-822.8-4-5-B
MPN: 822.8-4-5-B

  • $7.78
    Unit price per
  • Save $0.14
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

JW WINCO GN822.8-4-5-B MINI INDEXING PLUNGER - 822.8-4-5-B
GN 822.8 mini indexing plungers feature small, compact dimensions. They are mounted by countersunk screws.
Body: Zinc Die-Cast
Knob: Plastic
Plunger Pin: Stainless Steel
Locking: n/a
GN822.8 Standard Sheet

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

JW WINCO GN822.8-4-5-B MINI INDEXING PLUNGER - 822.8-4-5-B

GN 822.8 mini indexing plungers feature small, compact dimensions. They are mounted by countersunk screws.

Body: Zinc Die-Cast

Knob: Plastic

Plunger Pin: Stainless Steel

Locking: n/a

Knob Dia.: 21 mm

Plunger Dia.: 4 mm

Plunger Length: 5 mm

Overall Length: 20.5 mm

Plate Width: 35 mm

Plate Length: 15 mm

Initial Load: 4 N

End Load: 12 N

GN822.8 Standard Sheet
