Brand: JW Winco

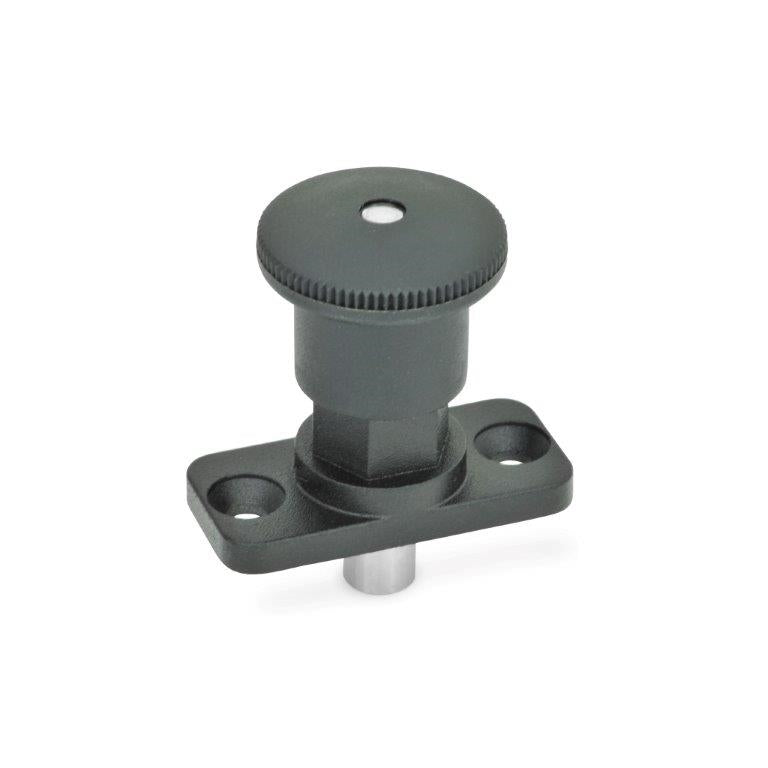

JW WINCO GN822.8-4-10-C MINI INDEXING PLUNGER - 822.8-4-10-C
SKU: JW-822.8-4-10-C
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN822.8-4-10-C MINI INDEXING PLUNGER - 822.8-4-10-CGN 822.8 mini indexing plungers feature small, compact dimensions. They are mounted by countersunk screws.
Body: Zinc Die-Cast
Knob: Plastic
Plunger Pin: Stainless Steel
Locking: Lock-Out
GN822.8 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN822.8-4-10-C MINI INDEXING PLUNGER - 822.8-4-10-C
GN 822.8 mini indexing plungers feature small, compact dimensions. They are mounted by countersunk screws.
Body: Zinc Die-Cast
Knob: Plastic
Plunger Pin: Stainless Steel
Locking: Lock-Out
Knob Dia.: 21 mm
Plunger Dia.: 4 mm
Plunger Length: 10 mm
Overall Length: 20.5 mm
Plate Width: 35 mm
Plate Length: 15 mm
Initial Load: 4 N
End Load: 12 N
