Brand: JW Winco

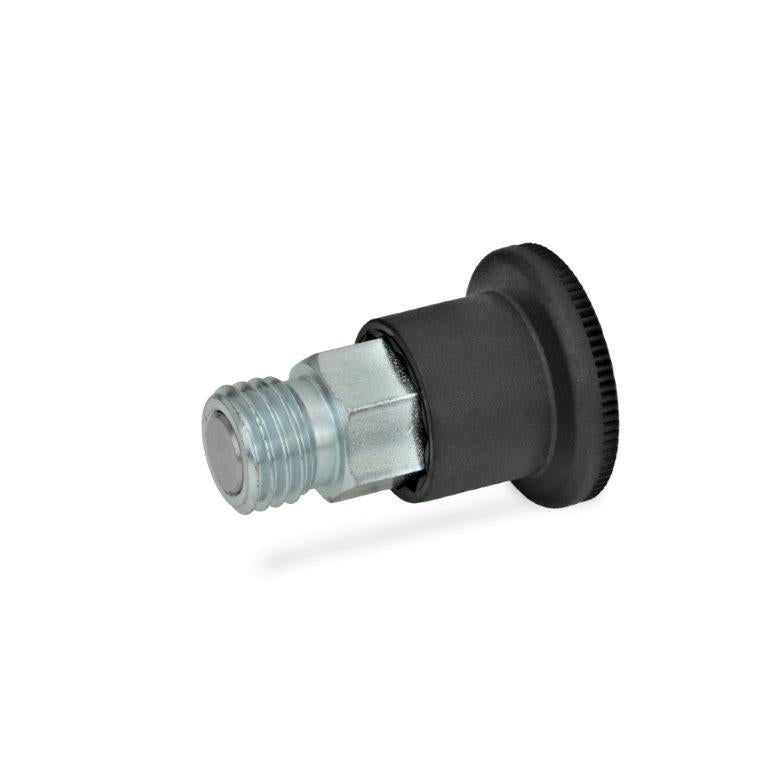

JW WINCO GN822.6-8-M16X1.5-C MINI INDEX PLUNGER - 822.6-8-M16X1.5-C
SKU: JW-822.6-8-M16X1.5-C
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN822.6-8-M16X1.5-C MINI INDEX PLUNGER - 822.6-8-M16X1.5-CGN 822.6 mini indexing plungers are distinguished for their small dimensions.Based on the principle of the GN 822 mini indexing plungers, this model combines their clever type of construction with a complete series of all current sizes of bolts and threads.
Body: Steel
Knob: Plastic
Plunger Pin: Stainless Steel
Locking: Lock-Out
Thread Type: Metric
Thread: M16
GN822.6 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN822.6-8-M16X1.5-C MINI INDEX PLUNGER - 822.6-8-M16X1.5-C
GN 822.6 mini indexing plungers are distinguished for their small dimensions.Based on the principle of the GN 822 mini indexing plungers, this model combines their clever type of construction with a complete series of all current sizes of bolts and threads.
Body: Steel
Knob: Plastic
Plunger Pin: Stainless Steel
Locking: Lock-Out
Thread Type: Metric
Thread: M16
Knob Dia.: 33 mm
Plunger Dia.: 8 mm
Plunger Length: 10 mm
Overall Length: 47.5 mm
Initial Load: 11 N
End Load: 35 N
