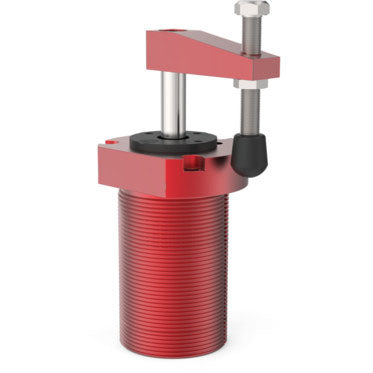

DESTACO 8215 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Brand: DESTACO

DESTACO 8215 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

SKU: DE-STA-CO-8215
MPN: 8215

  • $495.08
    Unit price per
  • Save $38.29
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Ignite your welding and assembly projects with the trusted DESTACO 8215 - the ultimate THREADED BODY STYLE PNEUMATIC SWING CLAMP in the imperial units. Versatile and sturdy, these clamps can be mounted in a tapped or through hole for recessed mounting. The tapered piston rod and clamping arm are sensor-ready, while the spindle and cylinder bore provide 300N (67lbf) of clamping force at 5Bar (72Psi). Right hand swing stroke of 31.8mm (1.250in). Upgrade your clamping game and opt for the DESTACO 8215 pneumatic swing clamp today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 8215 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The imperial threaded bodies can be mounted in a tapped hole or athrough hole for recessed mounting. Tapered piston rod allows the clamping arm

  • Sensor ready for round style sensors
  • Clamping arm and spindle included. Available with out clamping arm, specify -LA
  • Right Hand Swing
Stroke (mm) 31.8
Stroke (in) 1.250
Cylinder Bore (mm) 38.1
Cylinder Bore (in) 1.5
Clamping Force @ 5Bar[72Psi] (N) 300
Clamping Force @ 5Bar[72Psi] (lbf.) 67
Mount Threaded Body
Replacement Seal Kit 821560
Swing Direction RH
Air Port size 3/8-16
Air Consumption (per double stroke at 5 bar) (dm³) 0.410
Air Consumption (per double stroke at 7 psi) (in³) 0.015
Stroke during rotation (mm) 19.1
Stroke during rotation (in) 0.75
Vertical clamp stroke (mm) 12.7
Vertical clamp stroke (in) 0.50
Sensor Ready Yes
Weight (kg) 1.00
Weight (lb) 2.20
Product Series Description Swing Clamp
