Brand: JW Winco

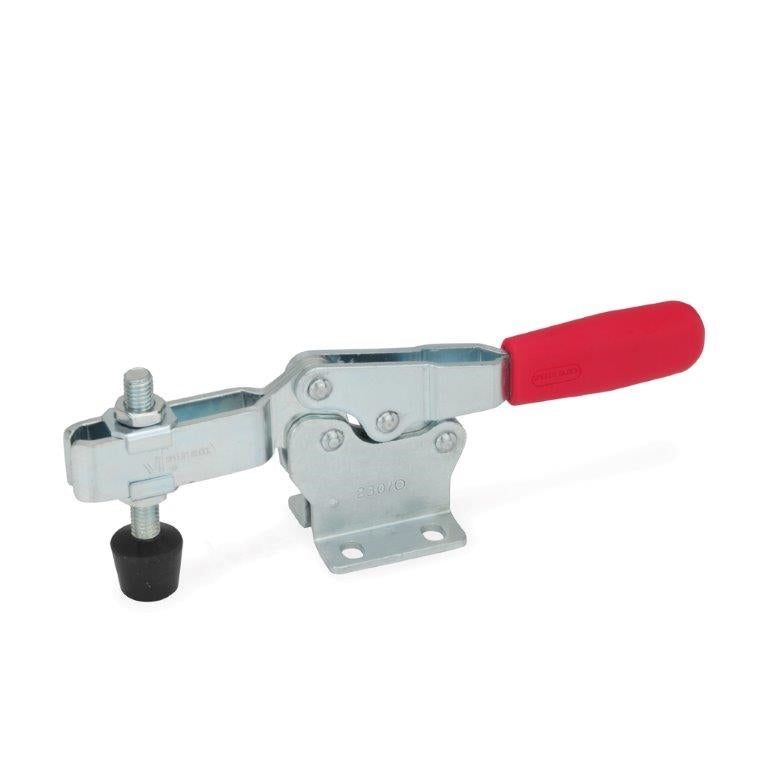

JW WINCO GN820-355-MC HORIZONTAL TOGGLE CLAMP
SKU: JW-820-355-MC
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN820-355-MC HORIZONTAL TOGGLE CLAMPGN 820 Horizontal acting toggle clamps work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position.
Steel Clamp with Zinc plated Finish
GN 820 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN820-355-MC HORIZONTAL TOGGLE CLAMP
GN 820 Horizontal acting toggle clamps work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position.
Clamp: Steel
Finish: Zinc plated
Hand Grip: Plastic
Spindle: Steel
Type: U-bar, washers, spindle
Size: 355
Thread Dia.: M10
Holding Capacity: 1800 N
U-Bar Arm Length: 3.78"
Solid Bar Arm Length: -
Overall Length: 10.63"
Overall Height: 3.27"
Plate Length: 2.36"
Mounting Dist: 1.61"
Plate Width: 2.20"
Mounting Dist (Min/Max): 1.53" / 1.69"
