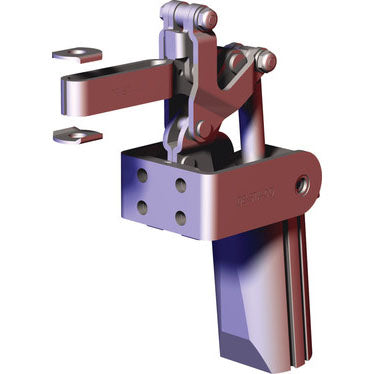

DESTACO 817-UE HOLD-DOWN ACTION CLAMP WITH G-PORTS

Brand: DESTACO

DESTACO 817-UE HOLD-DOWN ACTION CLAMP WITH G-PORTS

SKU: DE-STA-CO-817-UE
MPN: 817-UE

  • $226.96
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Inspire strong emotions and convey the value of DESTACO 817-UE HOLD-DOWN ACTION CLAMP WITH G-PORTS. This pneumatic clamp offers flexibility with dual mounting surfaces, a built-in flow control for smooth operation, and a magnetic ring piston for position sensing. It accommodates both T-slot and round sensors, making it highly versatile. The maximum holding capacity is 375 lbsf and the clamp arm length is 2.370 inches with a height under clamp arm of 2.690 inches. This clamp's u-bar style is perfect for various applications.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 817-UE HOLD-DOWN ACTION CLAMP WITH G-PORTS

DESTACO 817-UE PRODUCT DETAILS

Product Details

Pneumatic version of manual clamp models 317-U and 317-S. Dual mounting surfaces for max flexibility. Built-in flow control for smooth operation, magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.

  • Dual mounting surfaces for maximum flexibility
  • Sensor ready for round or T-slot style sensors
  • Built-in flow restriction eliminates the need for external flow controls
  • Replacement Clamp Assembly: 817-U-LC
Maximum Holding Capacity (lbsf) 375
Clamp Arm Length (in) 2.370
Height Under Clamp Arm (in) 2.690
Cylinder Bore (in) 1.26
Clamp Arm Style u-bar
Spindle Included? Yes
Application - Welding Fair/Medium
Application - Assembly Excellent/High
Duty Cycle Fair/Medium
Operating Temperature -10° to 90°C (-14° to 194° F)
Product Type Pneumatic Toggle Clamp
Air Port size G-1/8
Exerting Force (lbf) 369
Air Consumption (ft³) 0.015
Replacement Seal Kit 802450-32-1-0
Weight (lb) 2.31
Product Series Description Toggle Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group Standard pneumatic clamps
